Front Seat Track Cushion Adjuster - Vehicles With: Max Recline Seats: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front seat cushion cover. Refer to: Front Seat Cushion Cover - Vehicles With: Multi-Contour Seats .
Refer to: Front Seat Cushion Cover - Vehicles Without: Multi-Contour Seats .
Multi-contour seats
- Remove the front seat cushion adjuster. Refer to: Front Seat Cushion Adjuster - Vehicles With: Multi-Contour Seats .
Passenger seats

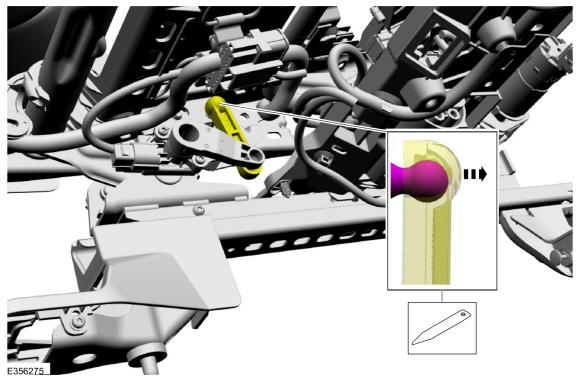

- Detach the front seat H point lift sensor arm. Use the General Equipment: Interior Trim Remover
All seats

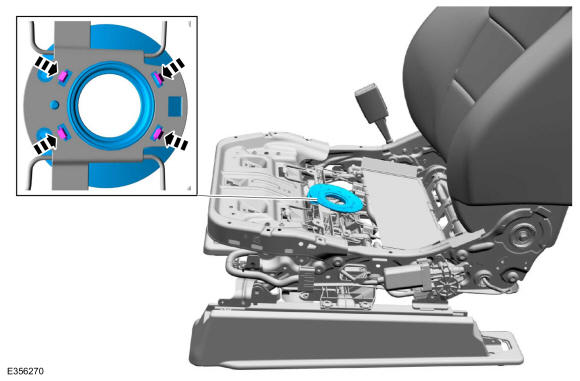

- Remove the front seat cushion blower motor. Refer to: Front Seat Cushion Blower Motor .

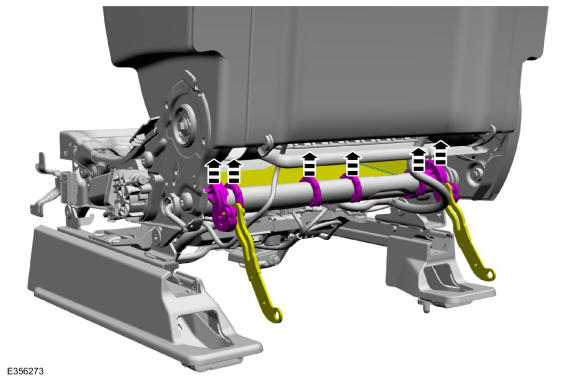

- Detach the retainers and remove the front seat cushion blower motor bellows.

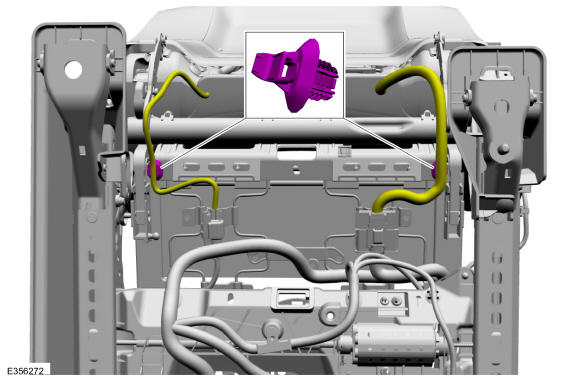

- Detach the front seat wiring harness retainers and position aside.

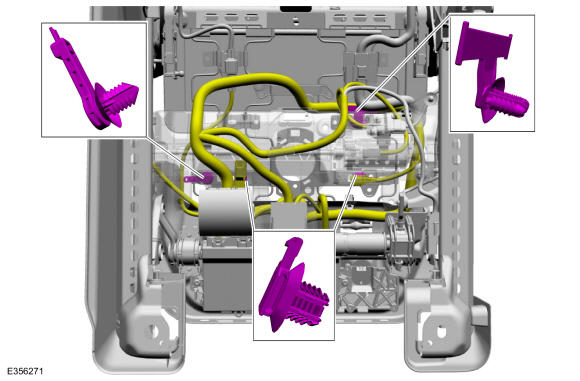

- Detach the front seat wiring harness retainers and position aside.

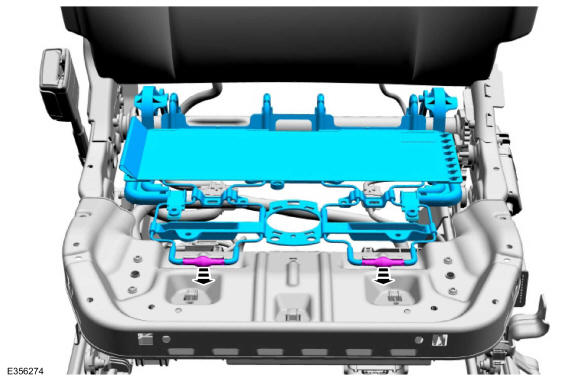

- Detach the front seat track cushion adjuster rear retainers.
- Detach the front retainers and remove front seat track cushion adjuster.
