Front Seat Power Lumbar Assembly - Vehicles Without: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

Regular cab

Remove the front seat. Refer to: Front Seat .
SuperCab and SuperCrew

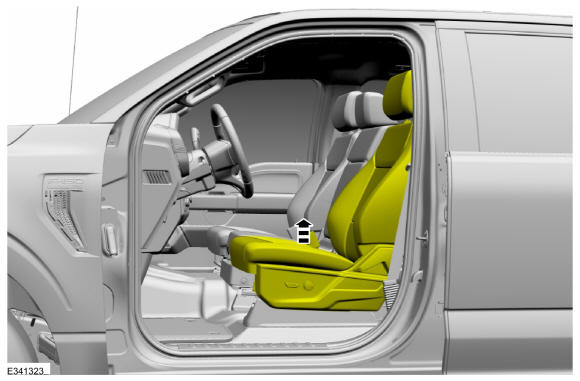

Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
All seats

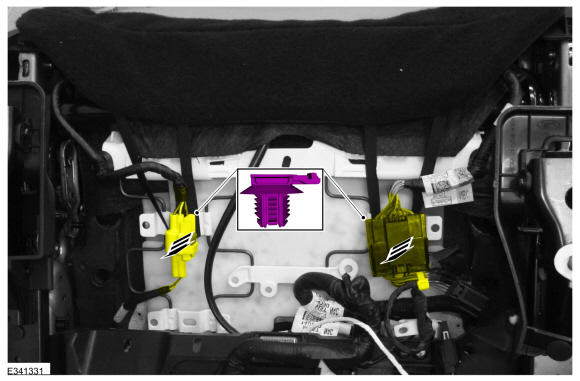

Detach the front seat electrical connector retainers and position the front seat wiring harnesses aside.

Courtesy of FORD MOTOR COMPANY

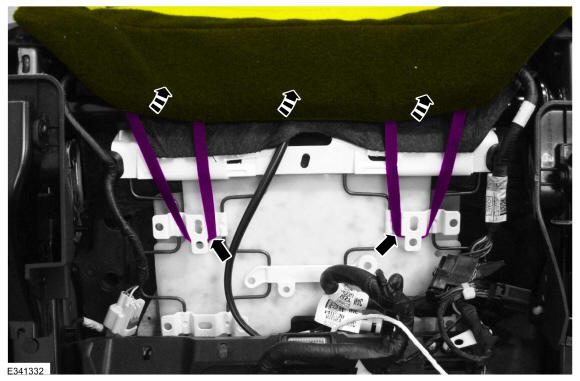

Detach the front seat backrest cover straps and position the front seat backrest cover aside.

Courtesy of FORD MOTOR COMPANY
Detach the front seat backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
NOTE: To install, gradually alternate the left and right front seat backrest cover zippers to prevent damage to the seat backrest cover.
1. Unzip the front seat backrest cover.
2. Lift the front seat backrest cover back flap.
3. Detach the front seat backrest cover retainer from the front seat backrest frame.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the front seat backrest heater mat electrical connector.
2. Detach the front seat backrest wiring harness electrical connector retainer and position aside.
3. Detach the front seat backrest heater mat wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

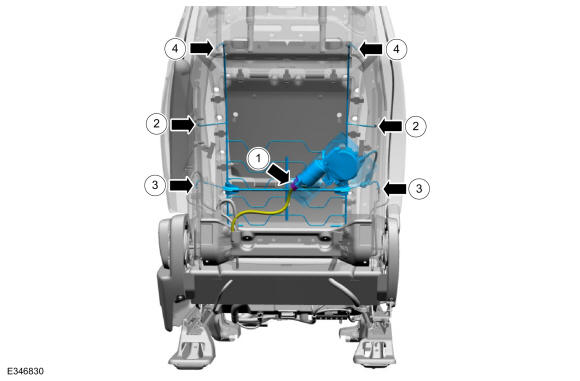

Remove the front seat power lumbar assembly.
1. Disconnect the electrical connector.
2. Release the middle J-hooks.
3. Release the lower J-hooks.
4. Release the upper J-hooks.
