Front Seat Power Lumbar Assembly - Vehicles With: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

NOTE: The front seat backrest driver seat SCMG (driver multi-contour seat module) is part of the front seat power lumbar assembly and is serviced as an assembly.

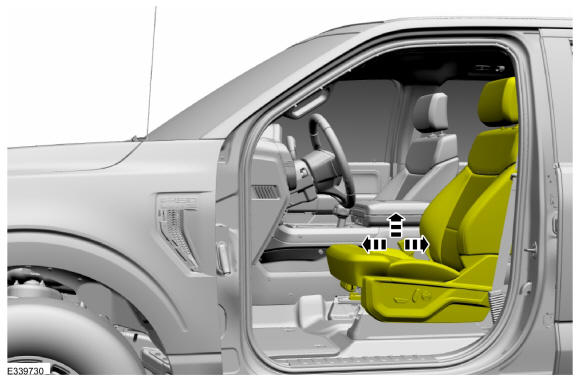

Position the front seat to access the front seat wiring harnesses.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is necessary only when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current SCMG (driver multi-contour seat module) installed. If the current SCMG (driver multi-contour seat module) does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCMG following the on-screen instructions.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
NOTE: Note routing of the multi-contour control pump hoses for installation.

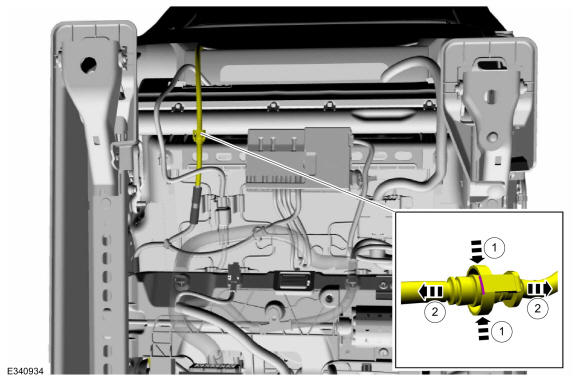

Disconnect the front seat backrest driver seat SCMG (driver multi-contour seat module)/passenger seat SCMH (passenger multi-contour seat module) hose.
1. Compress/squeeze the hose end fitting.
2. Disconnect the hose.
Courtesy of FORD MOTOR COMPANY

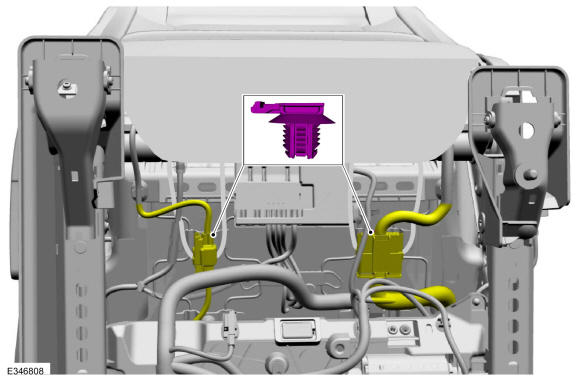

Detach the front seat electrical connector retainers and position the front seat wiring harnesses aside.

Courtesy of FORD MOTOR COMPANY

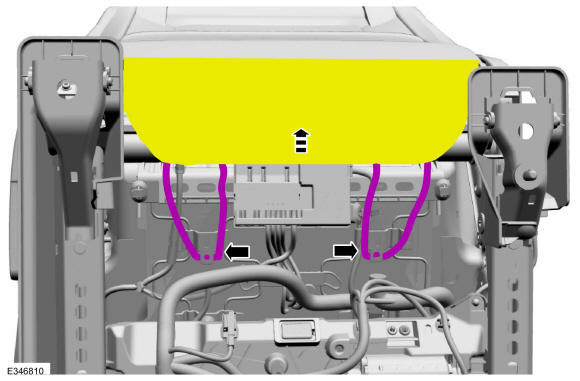

Detach the front seat backrest cover straps and position the front seat backrest cover aside.

Courtesy of FORD MOTOR COMPANY
Release the front seat backrest cover J-clip.

Courtesy of FORD MOTOR COMPANY

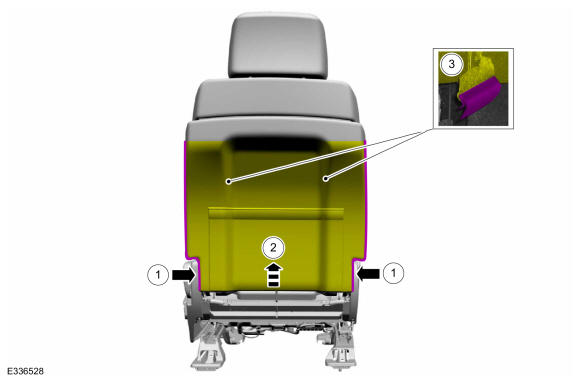

NOTE: To install, gradually alternate the left and right front seat backrest cover zippers to prevent damage to the front seat backrest cover.
1. Unzip the front seat backrest cover.
2. Lift the front seat backrest cover back flap.
3. Detach the front seat backrest cover retainer from the front seat backrest frame.
Courtesy of FORD MOTOR COMPANY

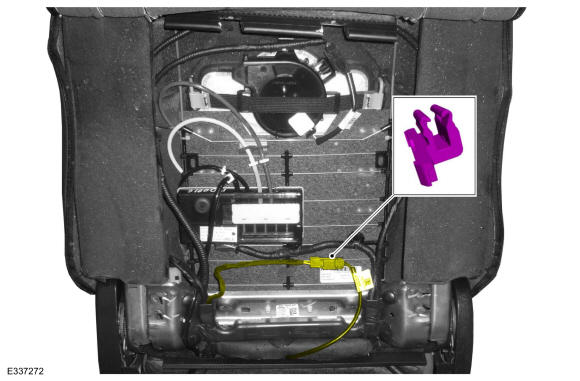

Detach the front seat backrest heater mat electrical connector and position aside.

Courtesy of FORD MOTOR COMPANY

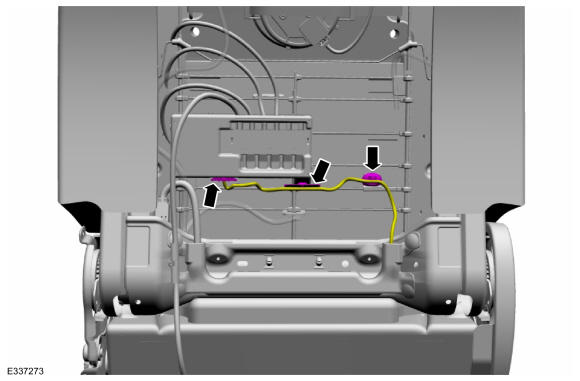

Disconnect the front seat backrest driver seat SCMG (driver multi-contour seat module)/passenger seat SCMH (passenger multi-contour seat module) module electrical connector and detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

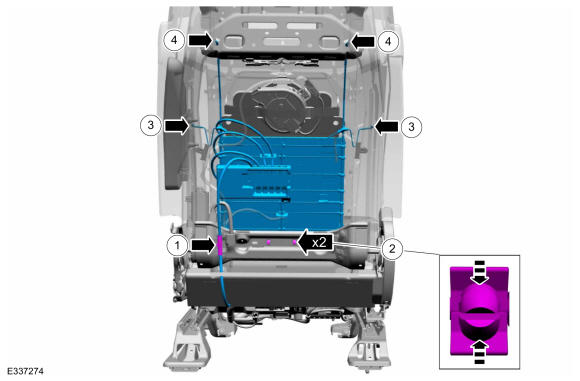

Remove the front seat power lumbar assembly.
1. Detach the front seat backrest driver seat SCMG (driver multi-contour seat module)/passenger seat SCMH (passenger multi-contour seat module) hose retainer.
2. Release the lower retainers.
3. Release the middle J-hooks.
4. Release the upper J-hooks.

Courtesy of FORD MOTOR COMPANY
