Front Seat Power Lumbar Assembly - Vehicles With: Max Recline Seats, Vehicles Without: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

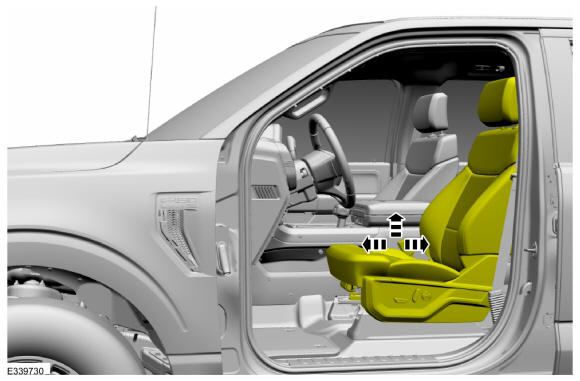

Position the front seat to access the front seat wiring harnesses.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

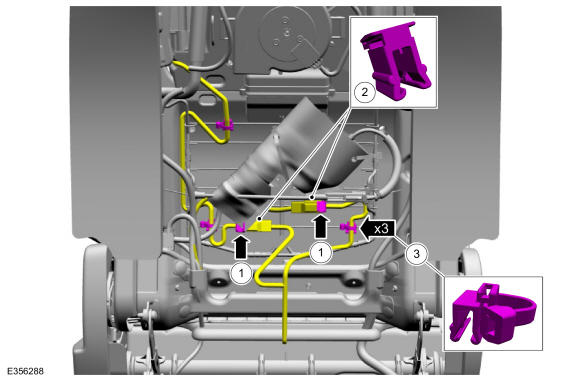

Detach the front seat electrical connector retainers and position the front seat wiring harnesses aside.

Courtesy of FORD MOTOR COMPANY
Detach the front seat backrest cover straps and position the front seat backrest cover aside.

Courtesy of FORD MOTOR COMPANY
Detach the front seat backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
NOTE: To install, gradually alternate the left and right front seat backrest cover zippers to prevent damage to the seat backrest cover.
1. Unzip the front seat backrest cover.
2. Lift the front seat backrest cover back flap.
3. Detach the front seat backrest cover retainers from the front seat backrest frame.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the front seat upper backrest and front seat backrest heater mat electrical connectors.
2. Detach the front seat backrest wiring harness retainers.
3. Detach the front seat backrest heater mat wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

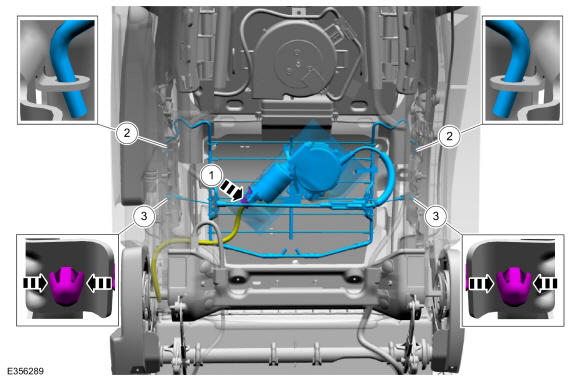

Remove the front seat power lumbar assembly.
1. Disconnect the electrical connector.
2. Release the upper J-hooks.
3. Detach the lower retainers.

Courtesy of FORD MOTOR COMPANY
