Front Seat H Point Lift Sensor - Vehicles With: Max Recline Seats: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the passenger seat. Refer to: Front Seat .

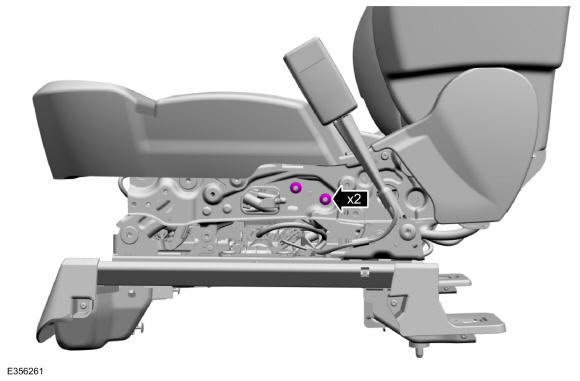

- Remove the front seat H point lift sensor nuts.
Torque
: 55 lb.in (6.2 Nm)

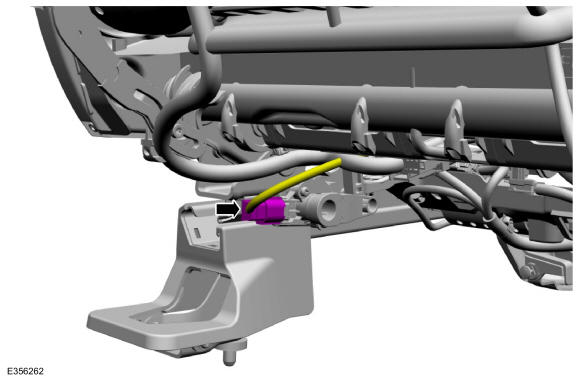

- Disconnect the front seat H point lift sensor electrical connector.

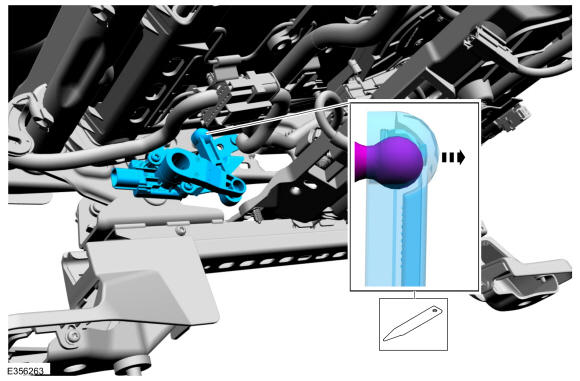

- Detach and remove the front seat H point lift sensor. Use the General Equipment: Interior Trim Remover
