Front Seat Cushion Blower Motor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
- Remove the front seat cushion cover and foam as an assembly. Refer to: Front Seat Cushion Cover - Vehicles With: Multi-Contour Seats . Refer to: Front Seat Cushion Cover - Vehicles Without: Multi-Contour Seats .

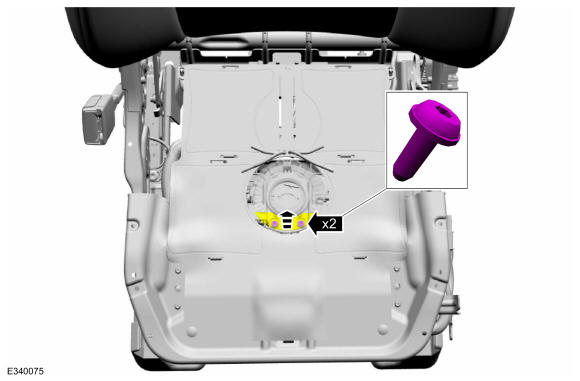

- Lift the edge of the front seat cushion blower motor air duct and remove the screws.
- Remove the front seat cushion blower motor.

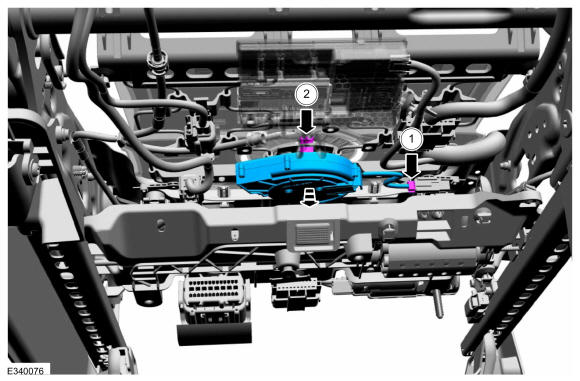

- Disconnect the electrical connector.
- Release the retainer.
