Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. If equipped. Remove the retainer and the front seat recline handle.
    GFD561754Courtesy of FORD MOTOR COMPANY
  2. Remove the front seat side shield screws.
    GFD561749Courtesy of FORD MOTOR COMPANY
  3. NOTE: Front seat side shield with power recline shown, all others similar.

    Remove the front seat side shield.

    1. Lift the rear of the front seat side shield and pull outward.
    2. Push the front seat side shield forward.
    3. Disconnect the electrical connector.

    GFD561755Courtesy of FORD MOTOR COMPANY

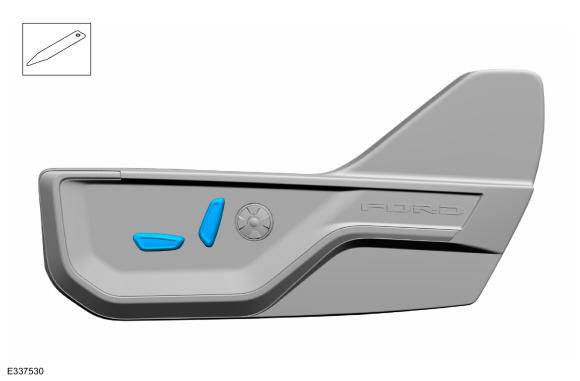

  4. Remove the front seat control switch knob(s).
    GFD561785Courtesy of FORD MOTOR COMPANY

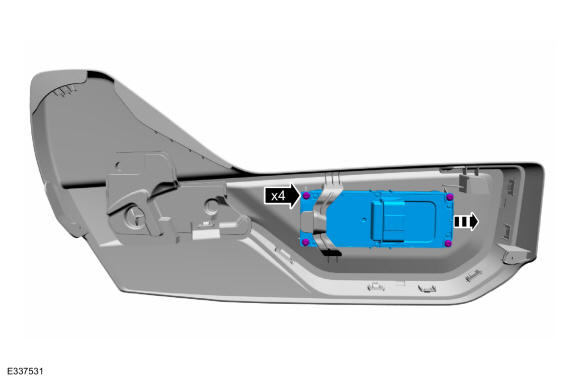

  5. Remove the screws and the front seat control switch.
GFD561786Courtesy of FORD MOTOR COMPANY
