Front Seat Backrest Cover - Vehicles Without: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

Remove the front seat. Refer to: Front Seat .
Manual seat with manual lumbar
Adjust the front seat manual lumbar to the fully relaxed position.

Courtesy of FORD MOTOR COMPANY
1. Remove the retainer and the front seat recline adjusting handle.
2. Remove the retainer and the front seat lumbar adjusting handle.
Courtesy of FORD MOTOR COMPANY
Remove the front seat side shield screws.

Courtesy of FORD MOTOR COMPANY
NOTE: Front seat side shield without manual lumbar shown, front seat side shield with manual lumbar similar.

Remove the front seat side shield.
1. Firmly grasp the front seat side shield, lift up and out, separating the front seat side shield from the recliner bracket.
2. From underneath, squeeze the retainers together and pull out on the front seat side shield.
3. If equipped with manual adjusting lumbar. Pull the front seat side shield over the front seat manual lumbar adjuster.
4. Slide the front seat side shield forward.
Courtesy of FORD MOTOR COMPANY
NOTE: For installation, note the routing of the front seat manual lumbar cable through the front seat backrest cover opening.

Position the front seat lumbar assembly cable away from the seat track.
1. Detach the cable retainers from the front seat track.
2. Detach the cable from the front seat lumbar actuator.
3. Release the cable from the front seat lumbar actuator.
Courtesy of FORD MOTOR COMPANY

All seats
Remove the side airbag. Refer to: Side Airbag .
Remove the front head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
If equipped. Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .
Detach the front seat backrest cover upper J-clip.

Courtesy of FORD MOTOR COMPANY

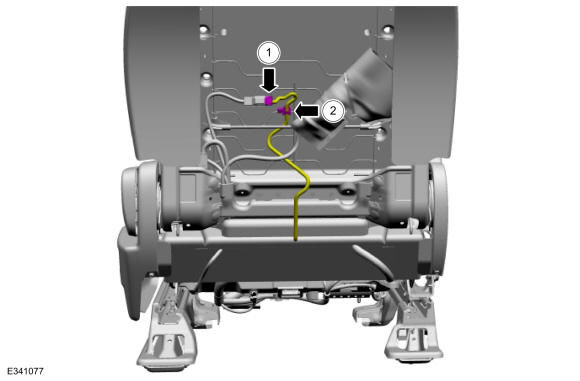

Disconnect the front seat backrest heater mater electrical connector.
1. Disconnect the front seat backrest heater mater electrical connector.
2. Detach the front seat backrest heater mat wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

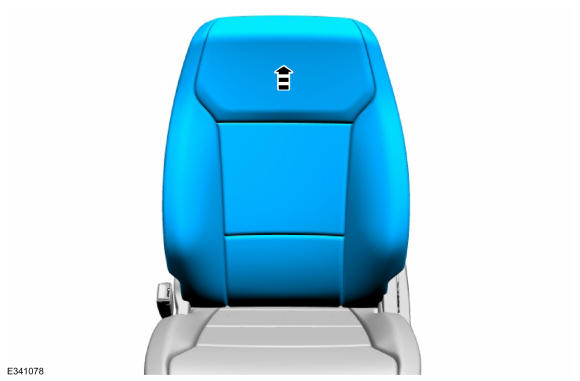

Remove the front seat backrest cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Base front seat shown, all others similar.

NOTE: This step is necessary only when installing a new component.

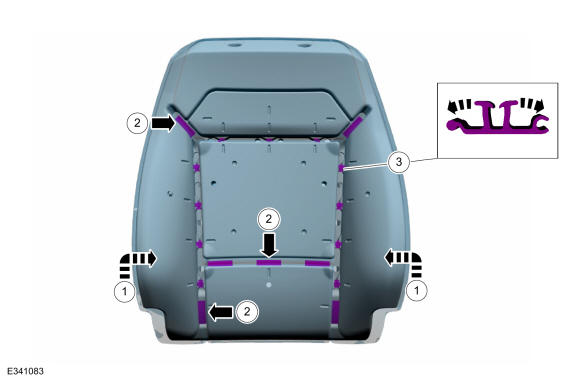

Remove the front seat backrest cover.
1. Invert the front seat backrest cover.
2. NOTE: Use care when separating the front seat backrest cover from the hook-and-loop strips, or the hook-and-loop strips can be torn from the front seat backrest foam.

  Release the hook-and-loop strips.
3. NOTE: Use care when separating the front seat backrest cover from the hook-and-arrows, or the hooks can be torn from the front seat backrest foam.

  Release the hook-and-arrows.
Courtesy of FORD MOTOR COMPANY

Vehicles with police package
NOTE: This step is necessary only when installing a new component.

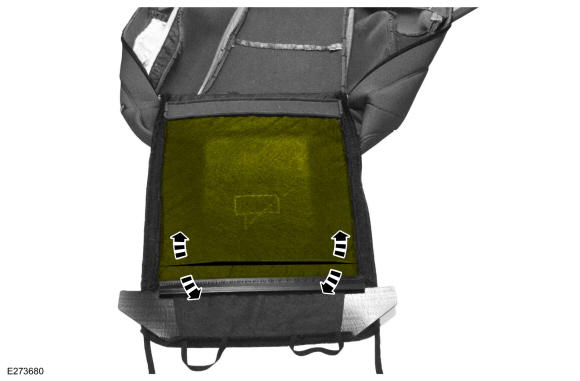

Open the front seat stab shield pocket.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is necessary only when installing a new component.

NOTE: Note the orientation of the front seat stab shield for installation.

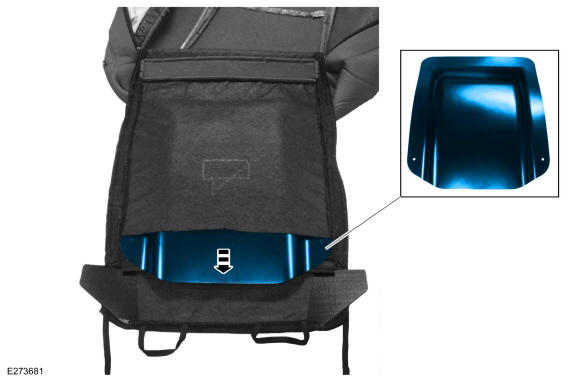

Remove the front seat stab shield.

Courtesy of FORD MOTOR COMPANY
