Front Seat Backrest Blower Motor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Driver seat shown, passenger seat similar.
NOTE: Front seat shown removed from vehicle for clarity.

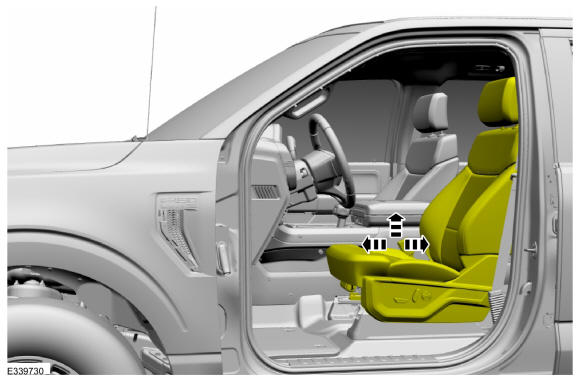

  1. Position the front seat to access the front seat wiring harnesses.
    GFD561765Courtesy of FORD MOTOR COMPANY
  2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

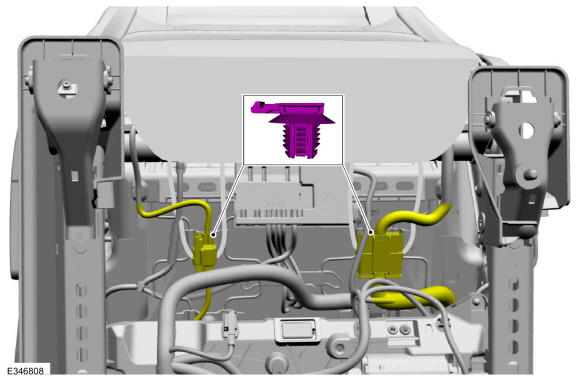

  3. Detach the front seat electrical connector retainers and position the front seat wiring harnesses aside.
    GFD561766Courtesy of FORD MOTOR COMPANY

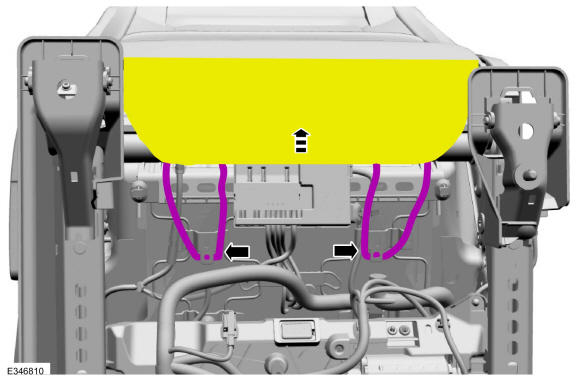

  4. Detach the front seat backrest cover straps and position the front seat backrest cover aside.
    GFD561767Courtesy of FORD MOTOR COMPANY

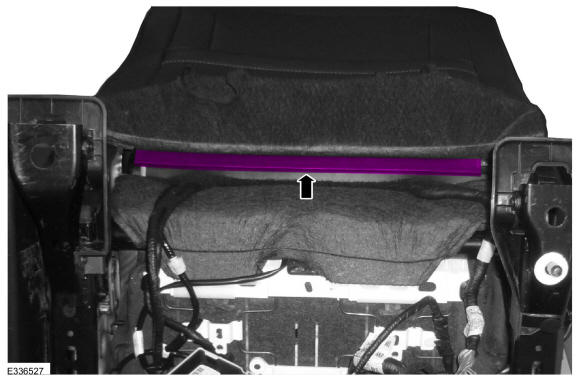

  5. Release the front seat backrest cover J-clip.
    GFD561711Courtesy of FORD MOTOR COMPANY

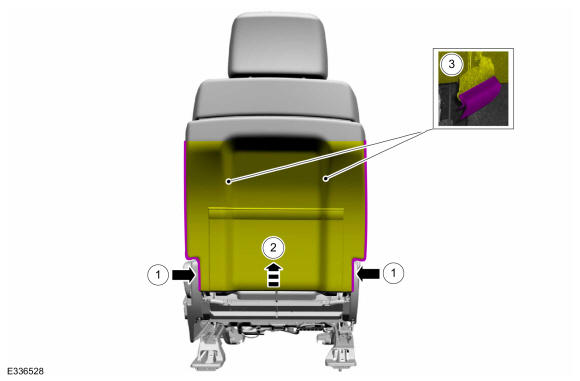

  6. NOTE: To install, gradually alternate the left and right front seat backrest cover zippers to prevent damage to the front seat backrest cover.

    1. Unzip the front seat backrest cover.
    2. Lift the front seat backrest cover back flap.
    3. Detach the front seat backrest cover retainer from the front seat backrest frame.

    GFD561768Courtesy of FORD MOTOR COMPANY

    With max recline seats

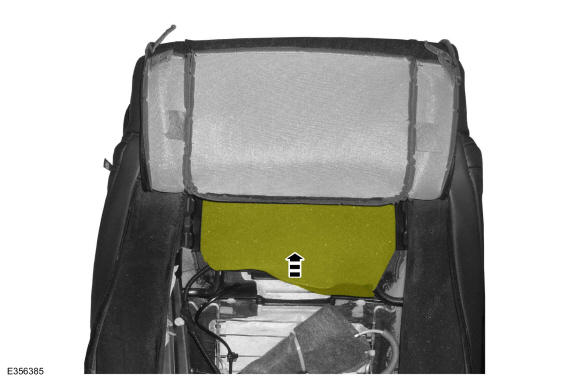

  7. Position the front seat backrest cover up.
    GFD561769Courtesy of FORD MOTOR COMPANY

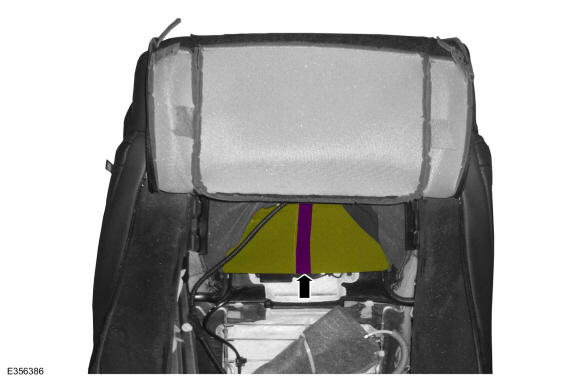

  8. Release the hook-and-loop retainer and position the front seat upper backrest cover aside.
    GFD561714Courtesy of FORD MOTOR COMPANY

    All seats

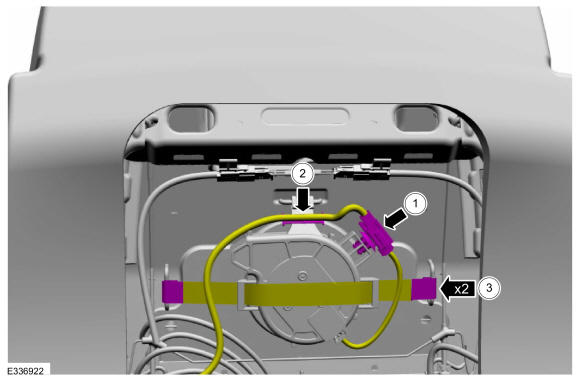

    1. Detach and disconnect the front seat backrest blower motor electrical connector.
    2. Detach the retainer and position the front seat backrest blower motor wiring harness aside.
    3. Detach the front seat backrest blower motor strap J-hooks.
    GFD561770Courtesy of FORD MOTOR COMPANY

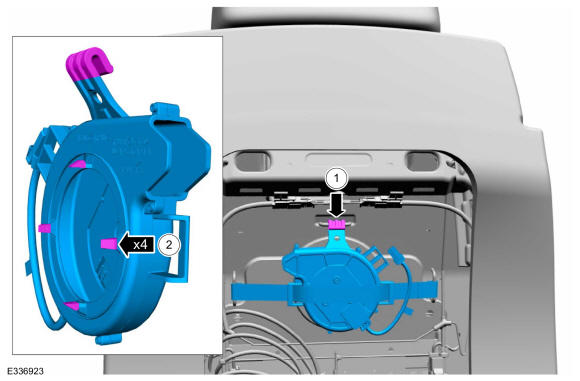

  10. NOTE: Use care when detaching the front seat backrest blower motor retaining clips from the vent bag or the vent bag may tear from the front seat backrest foam.
    NOTE: Front seat backrest blower motor without max recline seats shown, with max recline seats similar.

    Remove the front seat backrest blower motor.

    1. Detach the J-hook.
    2. Detach the retaining clips.

GFD561771Courtesy of FORD MOTOR COMPANY
