Front Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

Front seats with audio system

Remove the front head restraint. Refer to: Front Head Restraint - Vehicles With: Audio System .
Front seats without audio system or police package
Remove the front head restraint.

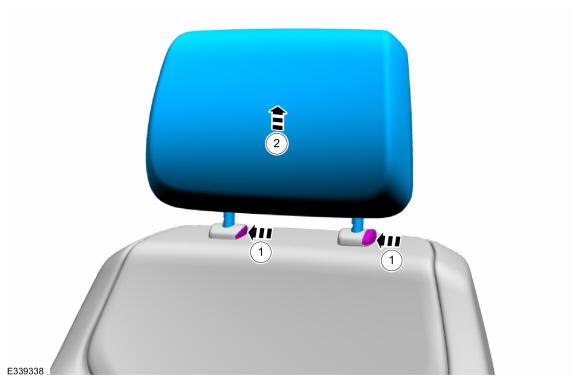

1. Depress the locking tabs.
2. Remove the front head restraint.
Courtesy of FORD MOTOR COMPANY

Front seats with police package
Remove the front head restraint.

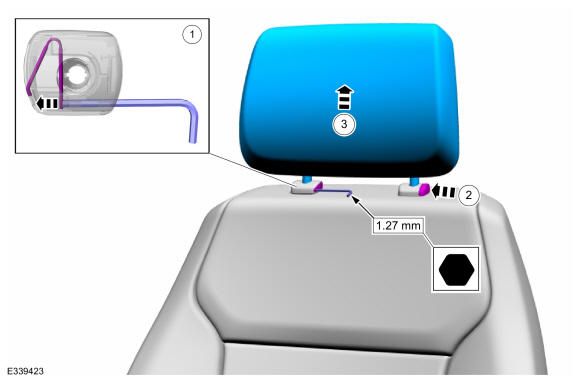

1. Insert a 1.27 mm (0.050 inch) hex key, push in and release the front head restraint guide sleeve internal locking spring.
2. Depress the locking tab.
3. Remove the front head restraint.
Courtesy of FORD MOTOR COMPANY

All seats
NOTE: Follow the unique instructions or graphics for this step in installation.

Remove the head restraint guide sleeve(s).

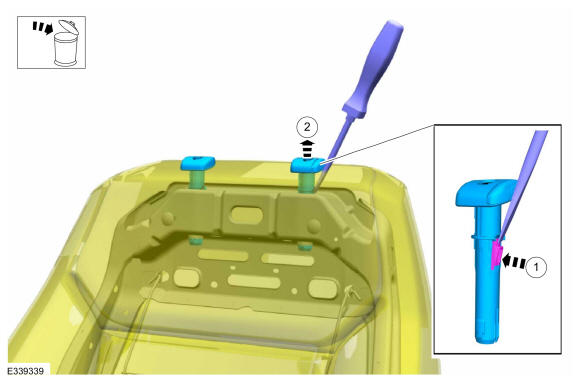

1. Release the tab. Use the General Equipment: Flat Headed Screw Driver
2. Remove the front head restraint guide sleeve.

Courtesy of FORD MOTOR COMPANY
