Front Head Restraint Guide Sleeve - Vehicles With: Max Recline Seats: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.

NOTE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeves at the correct position may result in component failure.

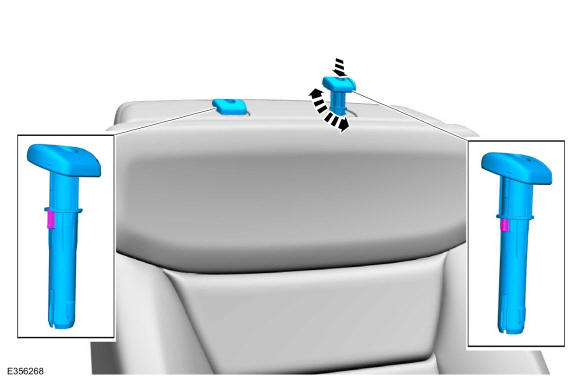

Allow the head restraint guide sleeve to slide freely through the front seat backrest foam and backrest trim cover. Using hand pressure, twist the head restraint guide sleeve while pushing it into the front seat backrest frame until the tab is locked into placed.

Courtesy of FORD MOTOR COMPANY

Front seats without audio system

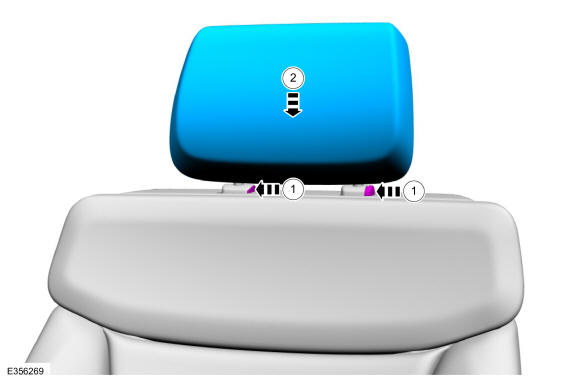

Install the front head restraint.
1. Depress the locking tab.
2. Install the front head restraint.
Courtesy of FORD MOTOR COMPANY
Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
Front seats with audio system
Install the front head restraint. Refer to: Front Head Restraint - Vehicles With: Audio System .
