Front Center Seat: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

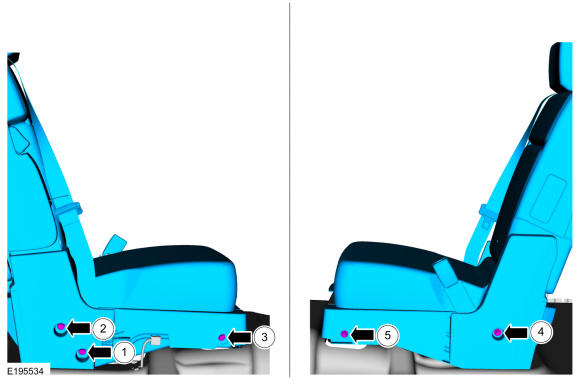

  2. Install the front center seat bolts in the following sequence.

    1. Install the RH center bolt.

      Torque

      : 41 lb.ft (55 Nm)

    2. Install the RH rear bolt.

      Torque

      : 41 lb.ft (55 Nm)

    3. Install the RH front bolt.

      Torque

      : 41 lb.ft (55 Nm)

    4. Install the LH rear bolt.

      Torque

      : 41 lb.ft (55 Nm)

    5. Install the LH front bolt.

      Torque

      : 41 lb.ft (55 Nm)

GFD561651Courtesy of FORD MOTOR COMPANY
