Front Center Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front center seat. Refer to: Front Center Seat .

    SuperCab and SuperCrew

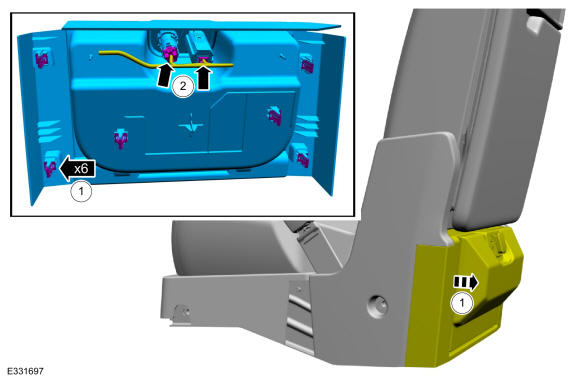

  2. Remove the front center seat rear cup holder assembly.

    1. Release the retainers and pull the front seat rear cup holder assembly out.
    2. Disconnect the auxiliary power point and the USB electrical connectors.

    GFD561694Courtesy of FORD MOTOR COMPANY
    1. Disconnect the PATS center antenna.
    2. Detach the front center seat wiring harness retainer.
    3. Detach the front center seat wiring harness retainer.
    4. Detach the front center seat wiring harness retainers.
    GFD561653Courtesy of FORD MOTOR COMPANY

    All vehicles

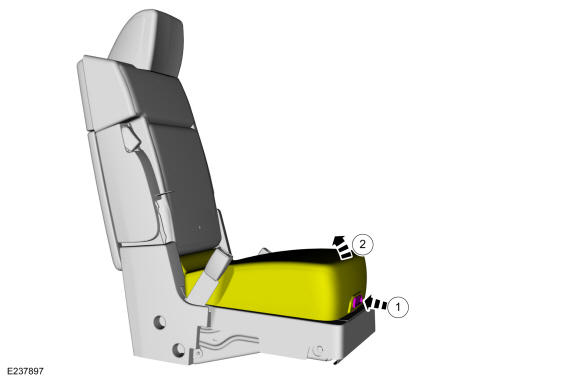

  4. Lift the front center seat cushion.

    1. Release the front center seat cushion latch.
    2. Lift the front center seat cushion.

    GFD561695Courtesy of FORD MOTOR COMPANY
  5. If equipped. Remove the front center seat cup holder.
    GFD561655Courtesy of FORD MOTOR COMPANY

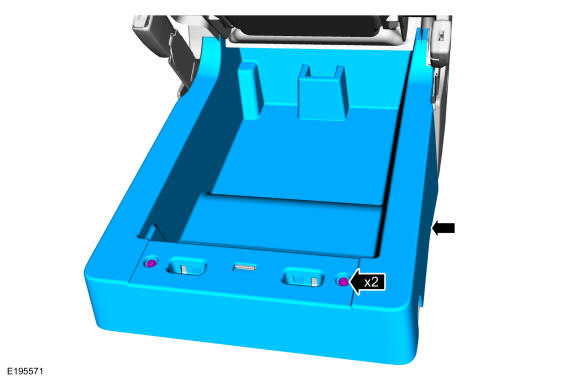

  6. Remove the screws and the front center seat storage tray.
    GFD561696Courtesy of FORD MOTOR COMPANY

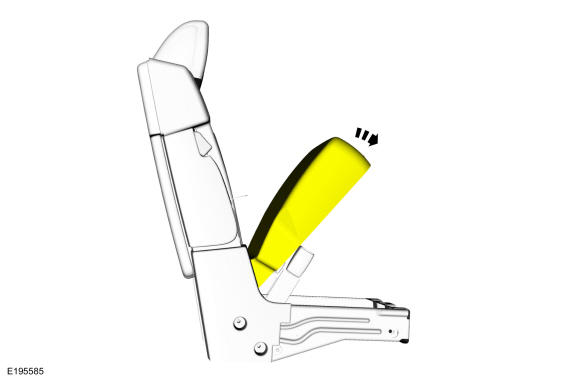

  7. Lower the front center seat cushion.
    GFD561697Courtesy of FORD MOTOR COMPANY
  8. Release the front center seat latch and fold the front center seat backrest down.
    GFD561670Courtesy of FORD MOTOR COMPANY

    Regular cab

  9. Remove the front center seat backrest latch cover.
    GFD561671Courtesy of FORD MOTOR COMPANY
  10. Remove the screws, release the retaining clip and remove the front center seat RH side shield.
    GFD561672Courtesy of FORD MOTOR COMPANY
  11. Remove the screws, release the retaining clips and remove the front center seat LH side shield.
    GFD561673Courtesy of FORD MOTOR COMPANY
  12. Release the seat latch and raise the front center seat backrest up.
    GFD561674Courtesy of FORD MOTOR COMPANY

    SuperCab and SuperCrew

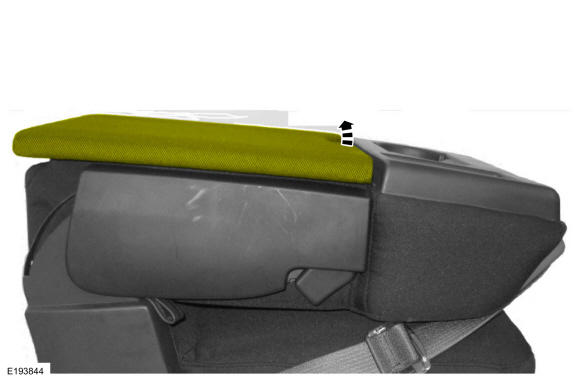

  13. If equipped. Lift the front center seat armrest storage compartment lid.
    GFD561698Courtesy of FORD MOTOR COMPANY
  14. Remove the front center seat backrest latch cover.
    GFD561660Courtesy of FORD MOTOR COMPANY
  15. Remove the screws, release the retaining clip and remove the front center seat RH side shields.
    GFD561662Courtesy of FORD MOTOR COMPANY

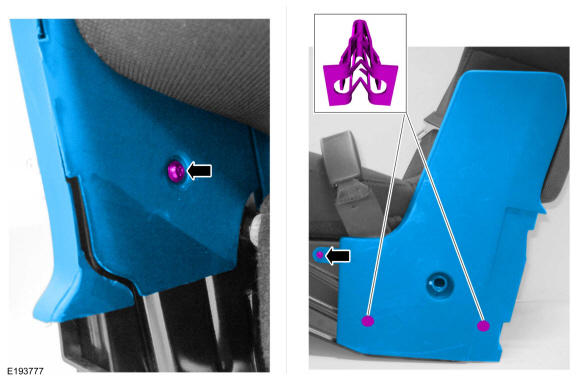

  16. Remove the screws, release the retaining clips and remove the front center seat LH side shield.
    GFD561699Courtesy of FORD MOTOR COMPANY

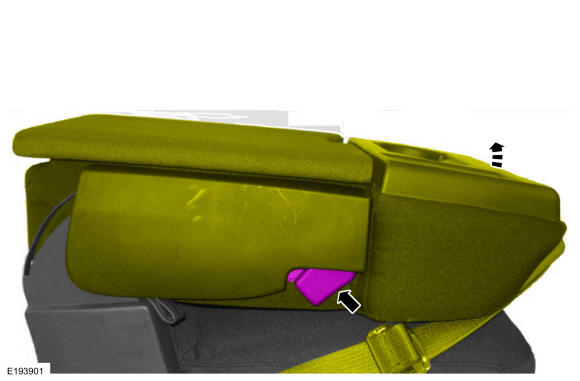

  17. Release the front center seat latch and raise the front center seat backrest up.
    GFD561700Courtesy of FORD MOTOR COMPANY

    All vehicles

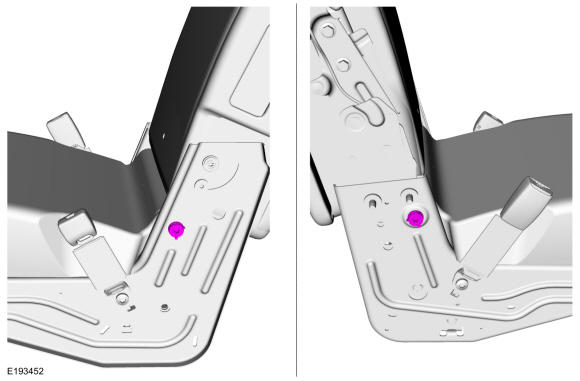

  18. Remove the front center seat cushion pivot bolts.

    Torque

    : 145 lb.in (16.4 Nm)

    GFD561701Courtesy of FORD MOTOR COMPANY

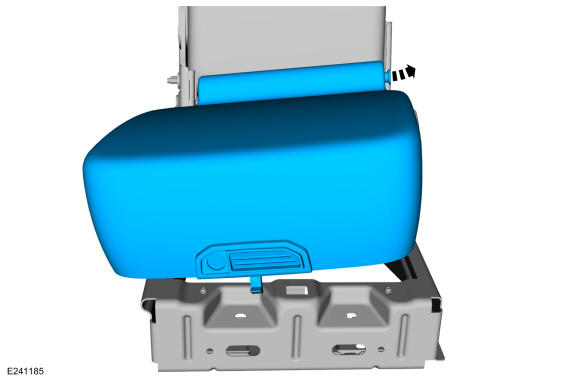

  19. Release the LH side of the front center seat cushion from the cushion base and remove the front center seat cushion.
    GFD561702Courtesy of FORD MOTOR COMPANY

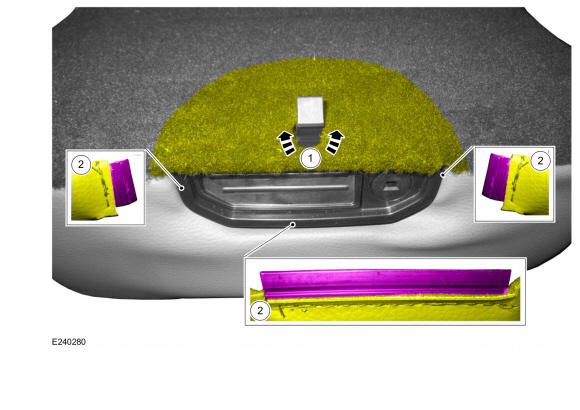

    1. Lift the front center seat cushion cover over the front center seat cushion latch catch.
    2. Detach the front center seat cushion cover tabs.
    GFD561703Courtesy of FORD MOTOR COMPANY

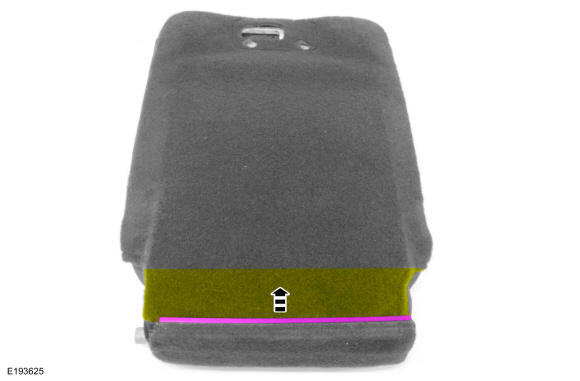

  21. Release the J-hook and position the front center seat cushion cover upward.
    GFD561704Courtesy of FORD MOTOR COMPANY

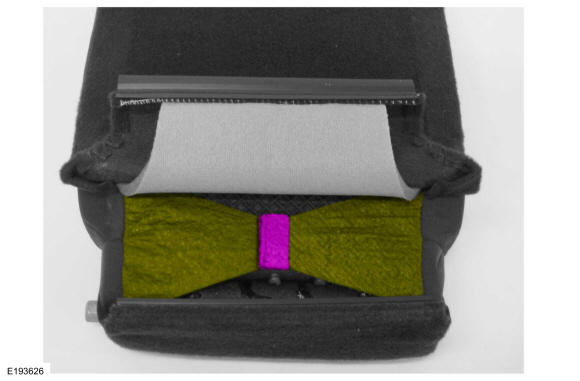

  22. Release the hook-and-loop retainer and position the front center seat cushion cover strap aside.
    GFD561705Courtesy of FORD MOTOR COMPANY

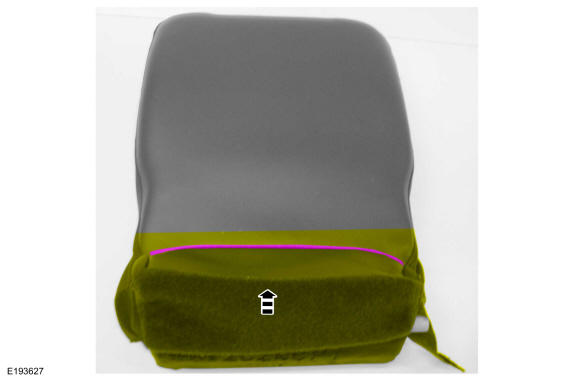

  23. NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the seat cushion foam.

    Release the hook-and-loop strip and position the cushion cover upward.

    GFD561706Courtesy of FORD MOTOR COMPANY

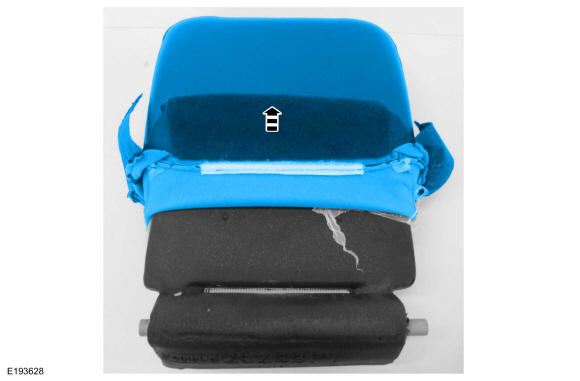

  24. Remove the front center seat cushion cover.
GFD561707Courtesy of FORD MOTOR COMPANY
