Front Center Seat Backrest Cover - SuperCab SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front center seat backrest. Refer to: Front Center Seat Backrest - SuperCab/SuperCrew .

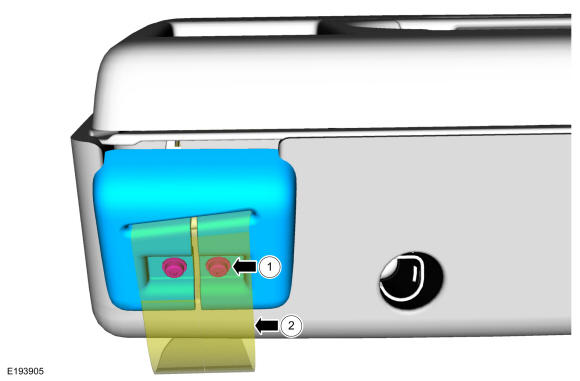

Remove the front center seatbelt guide.
1. Remove the screws.
2. Position the front center seatbelt aside.
Courtesy of FORD MOTOR COMPANY
Remove the front center seat cup holder insert.

Courtesy of FORD MOTOR COMPANY

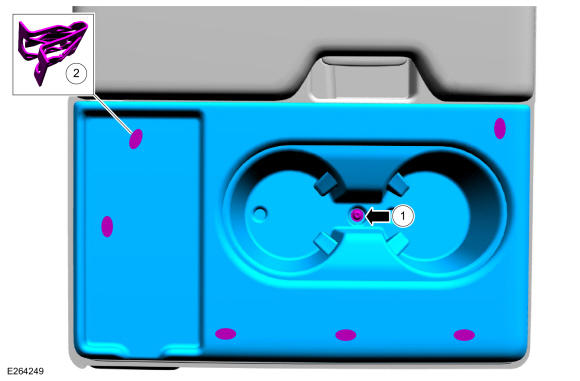

Remove the front center seat cup holder.
1. Remove the screw.
2. Release the retaining clips.
Courtesy of FORD MOTOR COMPANY

Seats with storage tray
Remove the insert.

Courtesy of FORD MOTOR COMPANY
Remove the front center seat armrest storage tray.
1. Remove the screws.
2. Release the retainers.
3. Remove the front center seat storage tray.
Courtesy of FORD MOTOR COMPANY
Release the cover from the J-hooks and remove the front center seat backrest cover.

Courtesy of FORD MOTOR COMPANY

Seats without storage tray
Position the front center seat backrest cover flap aside.

Courtesy of FORD MOTOR COMPANY
Release the cover from the J-hooks and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the front center seat backrest trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the front center seat backrest foam.

NOTE: Note the position of the seatbelt for installation.

Release the hook-and-loop strip and remove the front center seat backrest cover.

Courtesy of FORD MOTOR COMPANY
