Front Center Seat Backrest Cover - Regular Cab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front center seat. Refer to: Front Center Seat .

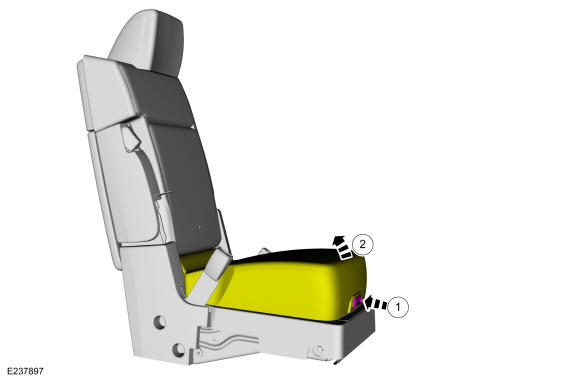

Lift the front center seat cushion.
1. Release the front center seat cushion latch.
2. Lift the front center seat cushion.
Courtesy of FORD MOTOR COMPANY
If equipped. Remove the front center seat cup holder.

Courtesy of FORD MOTOR COMPANY

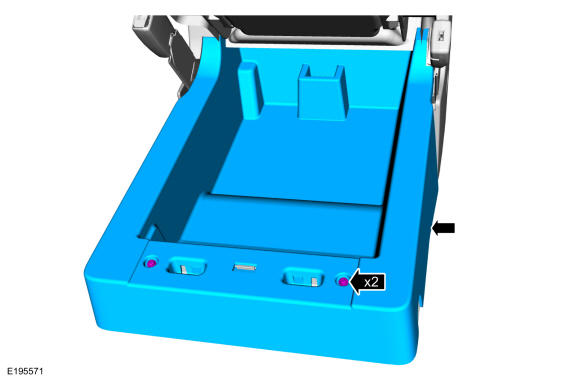

Remove the screws and the front center seat storage tray.

Courtesy of FORD MOTOR COMPANY

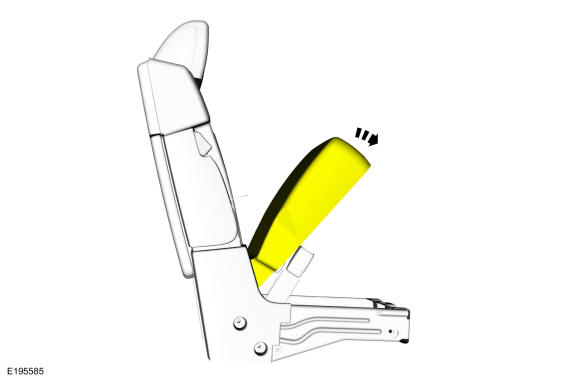

Lower the front center seat cushion.

Courtesy of FORD MOTOR COMPANY
Release the front center seat latch and fold the front center seat backrest down.

Courtesy of FORD MOTOR COMPANY
Remove the front center seat backrest latch cover.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clip and remove the front center seat RH side shield.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clips and remove the front center seat LH side shield.

Courtesy of FORD MOTOR COMPANY
Release the front center seat latch and raise the front center seat backrest up.

Courtesy of FORD MOTOR COMPANY
Remove the front head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
Remove the front center seat backrest.
1. Remove the stop bolt.
  Torque

  : 22 lb.ft (30 Nm)
2. Remove the pivot bolt.
  Torque

  : 35 lb.ft (47.5 Nm)
3. Remove the front center seat backrest latch upper bolts.
  Torque

  : 35 lb.ft (47.5 Nm)
Courtesy of FORD MOTOR COMPANY

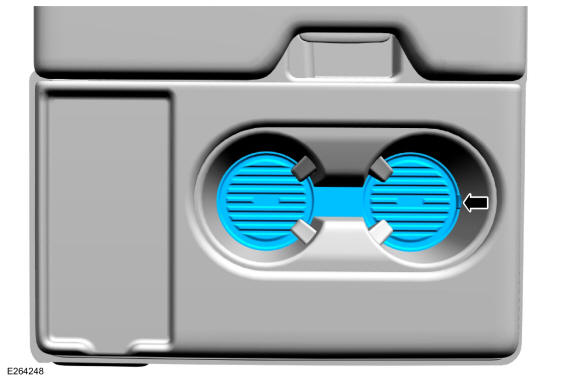

Remove the front center seat cup holder insert.

Courtesy of FORD MOTOR COMPANY
Remove the front center seat cup holder.
1. Remove the screw.
2. Release the retaining clips.
Courtesy of FORD MOTOR COMPANY

Seats with storage tray

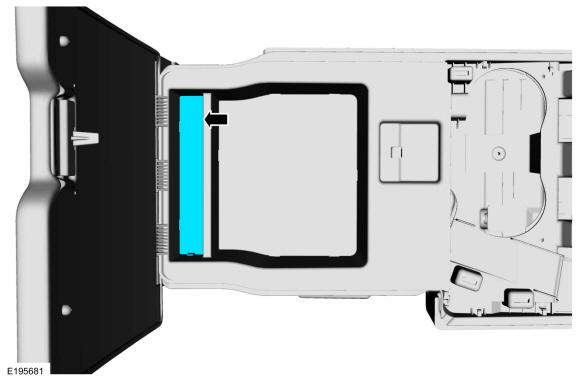

Remove the insert.

Courtesy of FORD MOTOR COMPANY

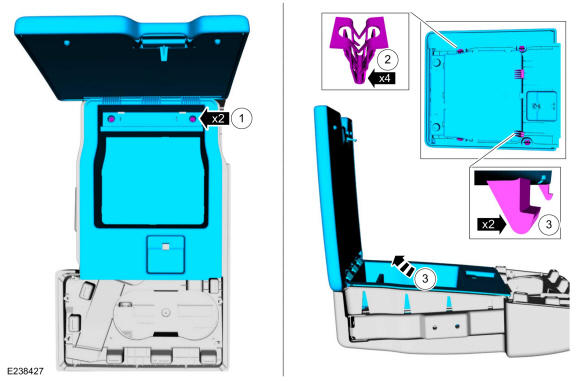

Remove the front center seat armrest storage tray.
1. Remove the screws.
2. Release the retainers.
3. Remove the front center seat storage tray.
Courtesy of FORD MOTOR COMPANY
NOTE: Front center seat backrest with seatbelt retractor shown, front center seat backrest without seatbelt retractor similar.

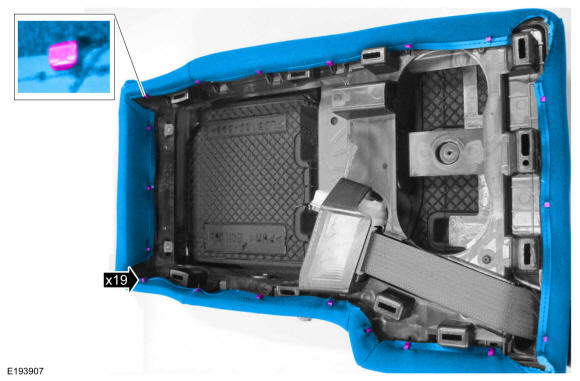

Release the front center seat backrest cover from the J-hooks and remove the front center backrest cover.

Courtesy of FORD MOTOR COMPANY

Seats without storage tray
Position the front center seat backrest cover flap aside.

Courtesy of FORD MOTOR COMPANY

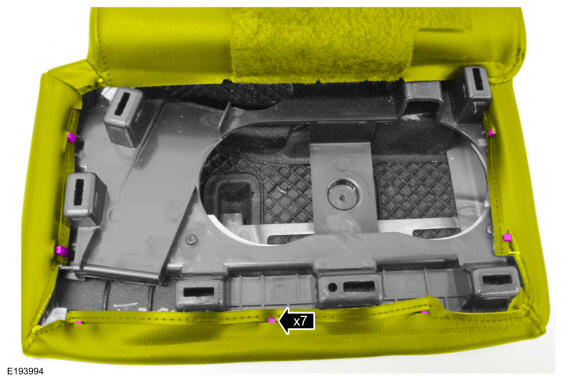

Release the cover from the J-hooks and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY

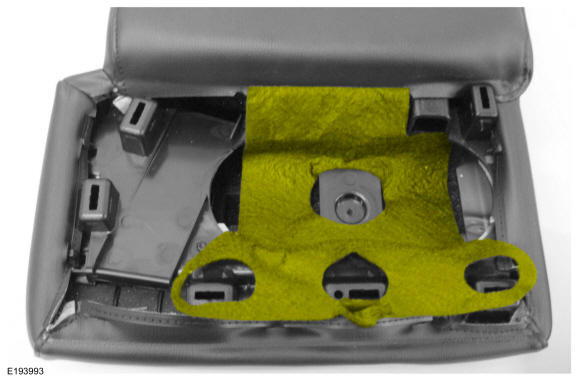

NOTE: Use care when separating the front center seat backrest trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the front seat backrest foam.

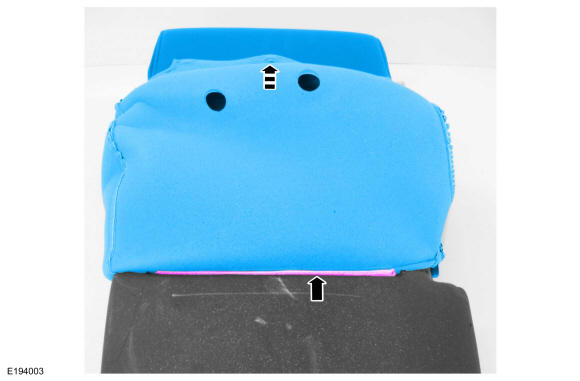

Release the hook-and-loop strip and remove the front center seat backrest cover.

Courtesy of FORD MOTOR COMPANY
