Driver Front Seat Module (DSM): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current DSM (driver front seat module) installed. If the current DSM (driver front seat module) does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

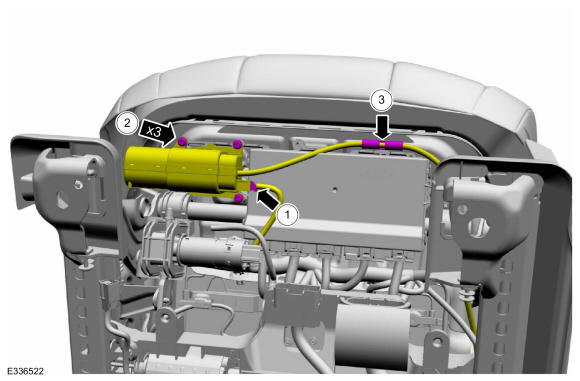

If equipped. Position the front multi-contour control pump aside.
1. Disconnect the electrical connector.
2. Remove the screws.
  Torque

  : 18 lb.in (2 Nm)
3. Detach the retainer.
Courtesy of FORD MOTOR COMPANY

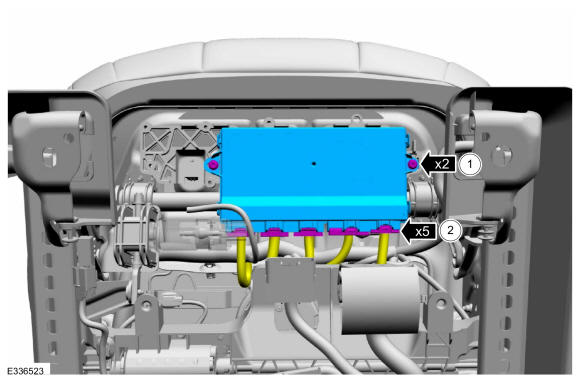

Remove the DSM.
1. Remove the screws.
  Torque

  : 44 lb.in (5 Nm)
2. Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
