Brake Pedal and Bracket: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Adjustable brake pedal and bracket shown in illustration, fixed brake pedal and bracket similar.

Vehicles equipped with adjustable pedals

NOTE: The brake pedal and the accelerator pedal must be in the same position when installing a new cable or a new pedal. The pedals must be all the way forward or all the way rearward or damage to components may occur.

Move the pedals to the full forward (away from the driver) position.

All vehicles
1. Position aside the weather strip

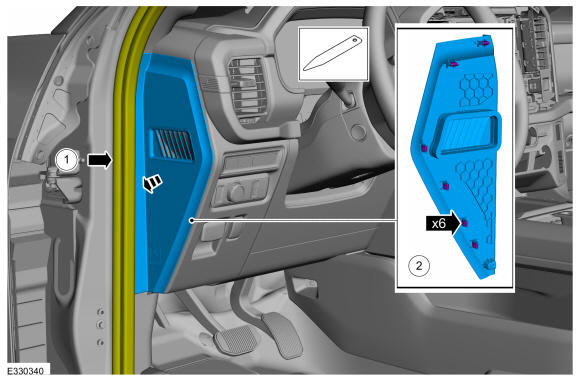

2. Release the clips and remove the LH instrument panel end cap.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

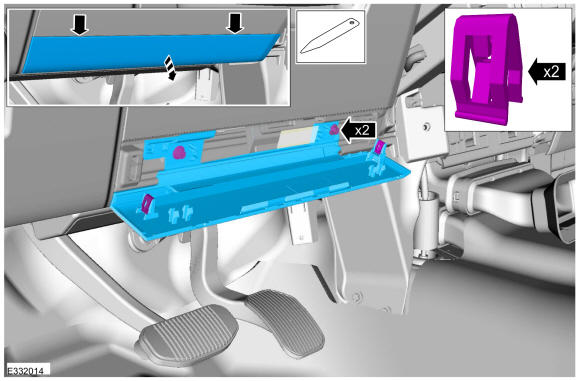

Release the clips to open the access panel, remove the bolts and the access panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

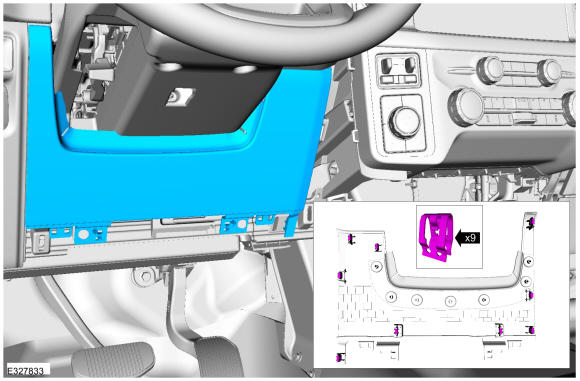

Release the clips and remove the lower steering column trim panel.

Courtesy of FORD MOTOR COMPANY

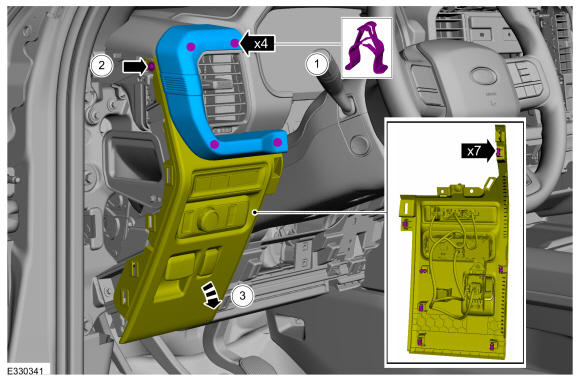

1. Release the clips and remove the LH instrument panel fin.
2. Remove the bezel assembly instrument panel cover upper mounting screw.
  Torque

  : 27 lb.in (3 Nm)
3. Pull outward the bezel assembly instrument panel cover by detaching the 7 clips and position the cover downward.
Courtesy of FORD MOTOR COMPANY

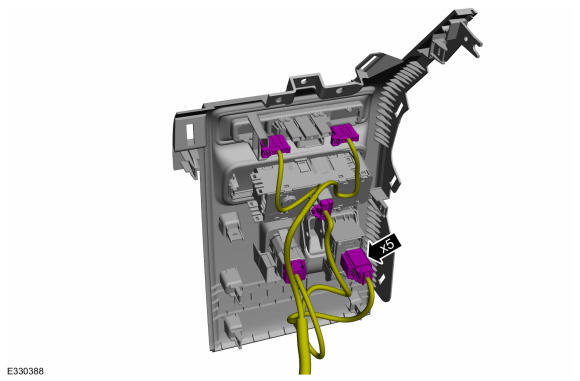

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with adjustable pedals

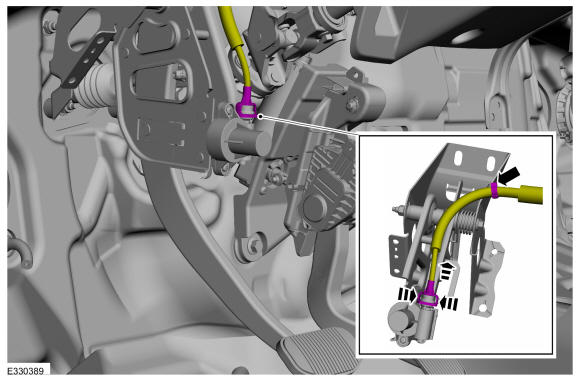

Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.

Courtesy of FORD MOTOR COMPANY

All vehicles

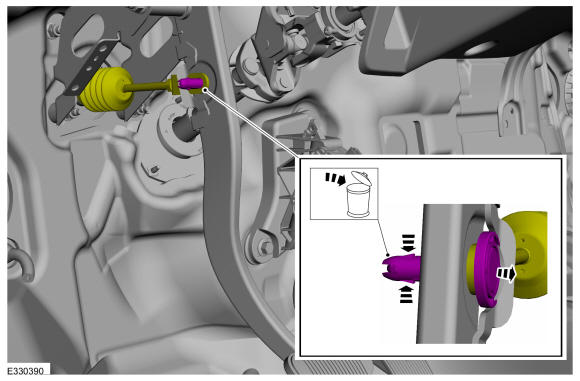

Remove the brake pedal clevis pin, and disconnect the brake booster push rod from the brake pedal arm. Discard the brake pedal clevis pin.

Courtesy of FORD MOTOR COMPANY

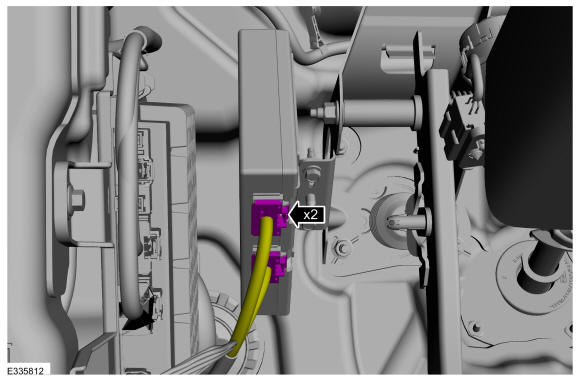

If equipped. Disconnect the trailer tow lighting module electrical connectors.

Courtesy of FORD MOTOR COMPANY

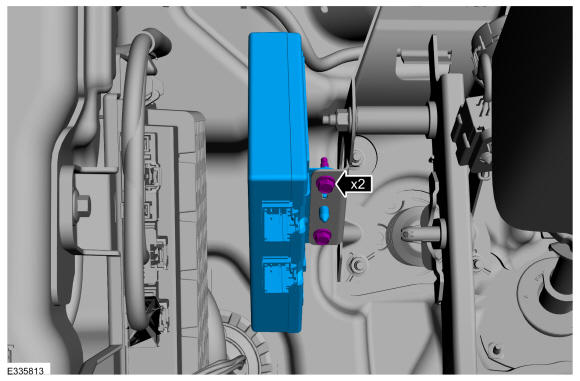

If equipped. Remove the bolts and trailer tow lighting module.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

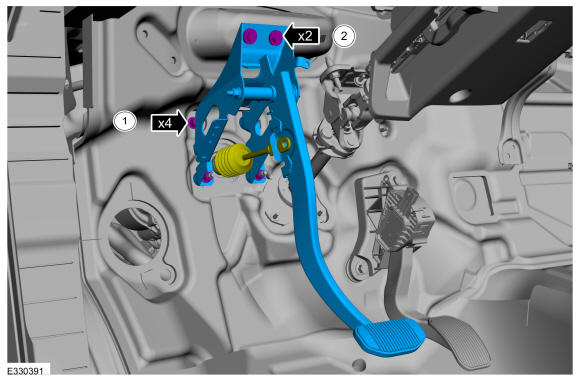

1. NOTE: Tighten the 4 brake booster-to-pedal bracket nuts in a cross-pattern.

  Remove the 4 brake booster-to-pedal bracket nuts.

  Torque

  : 18 lb.ft (25 Nm)
2. Remove the 2 brake pedal bracket bolts and while pushing the brake booster towards the engine compartment, remove the brake pedal and bracket.
  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
