Brake Pedal Control Switch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Release the clips and remove the LH instrument panel end cap.

Courtesy of FORD MOTOR COMPANY

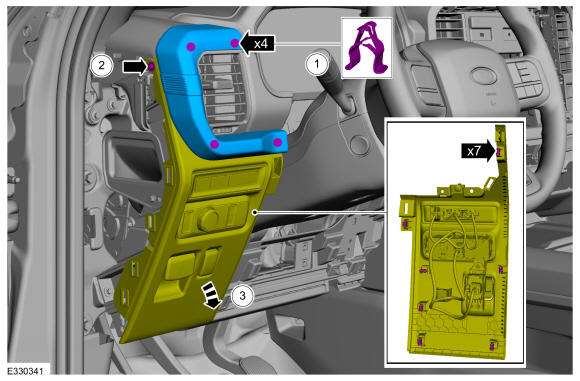

1. Release the clips and remove the LH instrument panel fin.
2. Remove the bezel assembly instrument panel cover upper mounting screw.
  Torque

  : 27 lb.in (3 Nm)
3. Pull outward the bezel assembly instrument panel cover by detaching the 7 clips and position the cover downward.
Courtesy of FORD MOTOR COMPANY

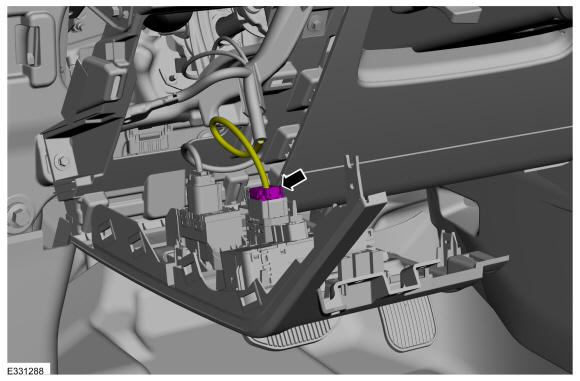

Disconnect the adjustable pedal switch electrical connector.

Courtesy of FORD MOTOR COMPANY

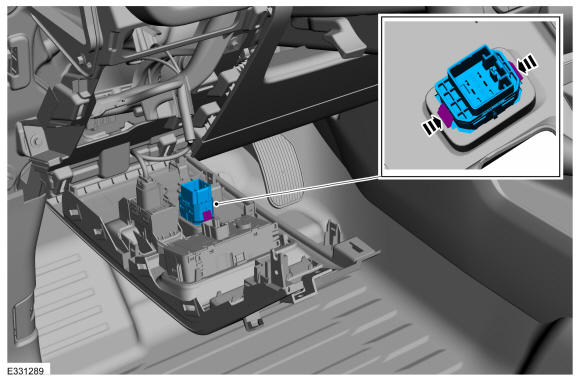

Press inward on the 2 clips and remove the adjustable pedal switch.

Courtesy of FORD MOTOR COMPANY
