Adjustable Pedal Indexing
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
NOTE:
The adjustable pedal system must be indexed whenever the brake pedal assembly or accelerator pedal assembly is installed or damage to the components may result.

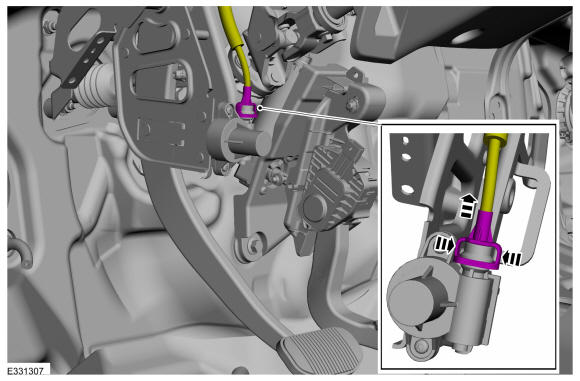

- Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.

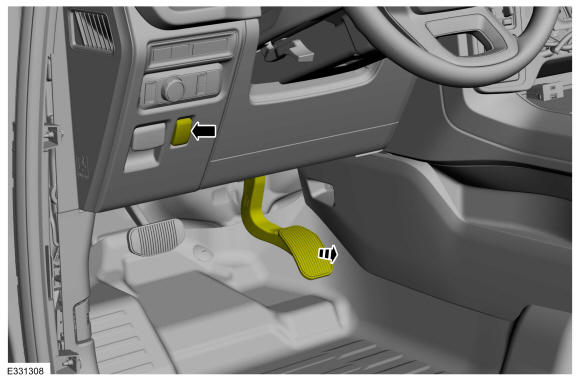

- Operate the accelerator pedal to the full rearward position.

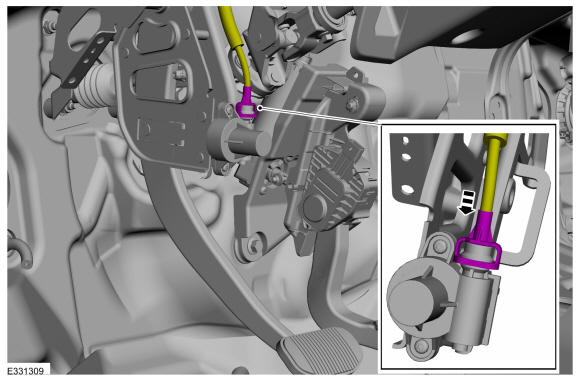

- Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.

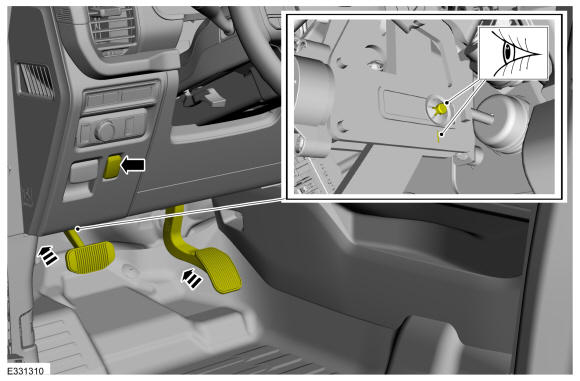

- Operate the adjustable pedals until the pin is aligned with the witness mark on the brake pedal bracket.
- Disconnect the adjustable pedal motor drive cable to the adjustable brake pedal drive.

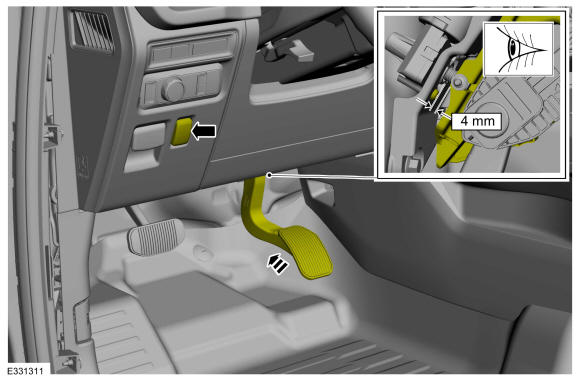

- Operate the adjustable accelerator pedal forward until there is a 4mm (0.157 in) gap between the screw head and the moving structure of the accelerator pedal.
- Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.
- Check that the brake and accelerator pedals can be fully adjusted forward and rearward.
