Parking Brake Switch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

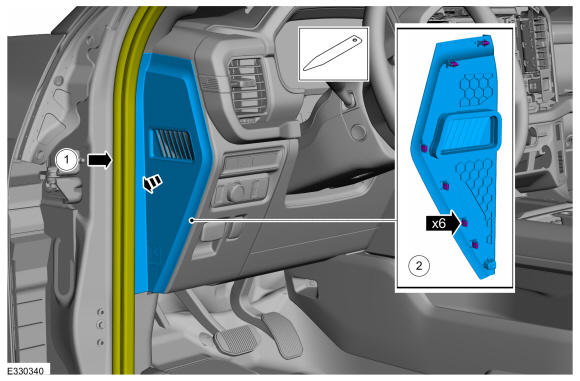

1. Position aside the weather strip
2. Release the clips and remove the LH instrument panel end cap. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

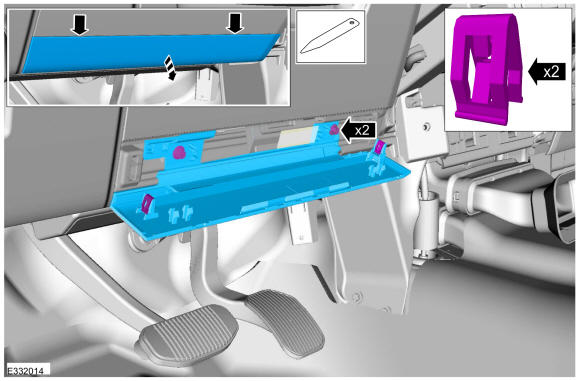

Release the clips to open the access panel, remove the bolts and the access panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

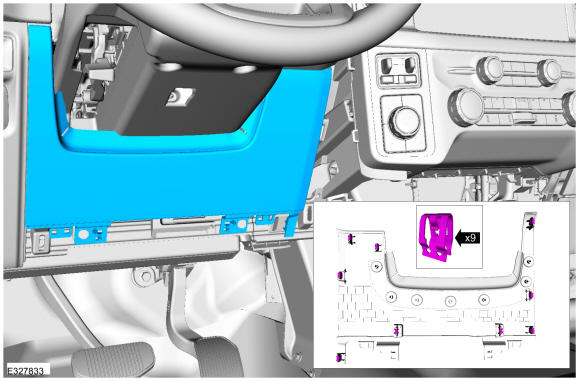

Release the clips and remove the lower steering column trim panel.

Courtesy of FORD MOTOR COMPANY

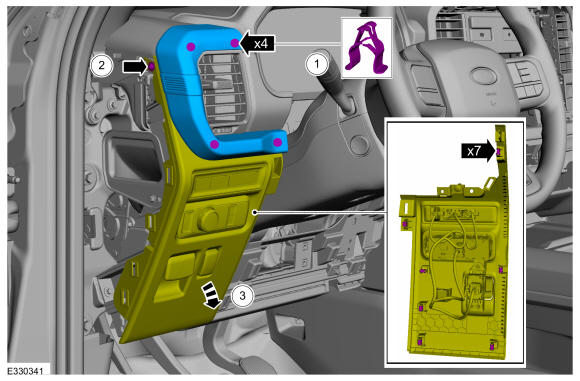

1. Release the clips and remove the LH instrument panel fin.
2. Remove the bezel assembly instrument panel cover upper mounting screw.
  Torque

  : 27 lb.in (3 Nm)
3. Pull outward the bezel assembly instrument panel cover by detaching the 7 clips and position the cover downward.
Courtesy of FORD MOTOR COMPANY

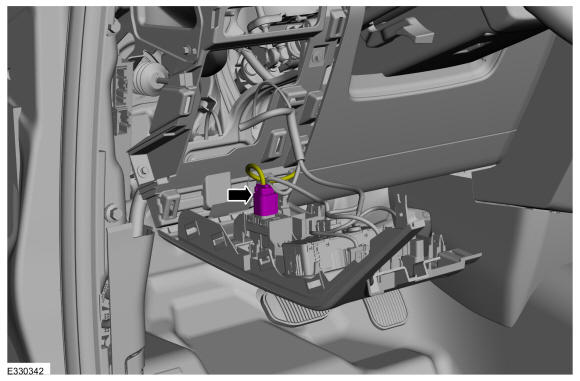

Disconnect the EPB switch electrical connector.

Courtesy of FORD MOTOR COMPANY

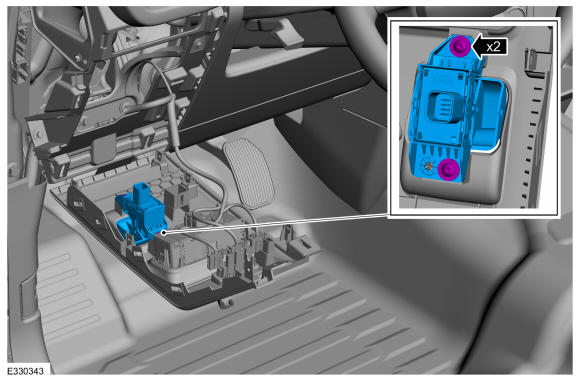

Remove the 2 screws and the EPB switch.
Torque

: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
