Steering Column Shrouds: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

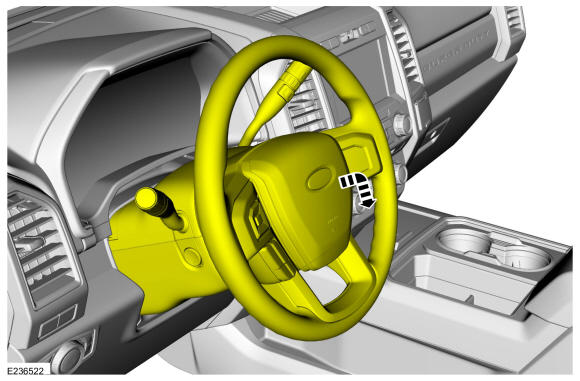

Fully Extend And Lower The Steering Column.

Courtesy of FORD MOTOR COMPANY

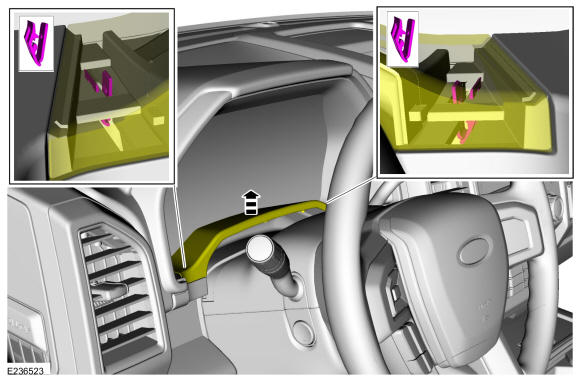

Release The Upper Gap Hider From The Ipc And Position Aside.

Courtesy of FORD MOTOR COMPANY

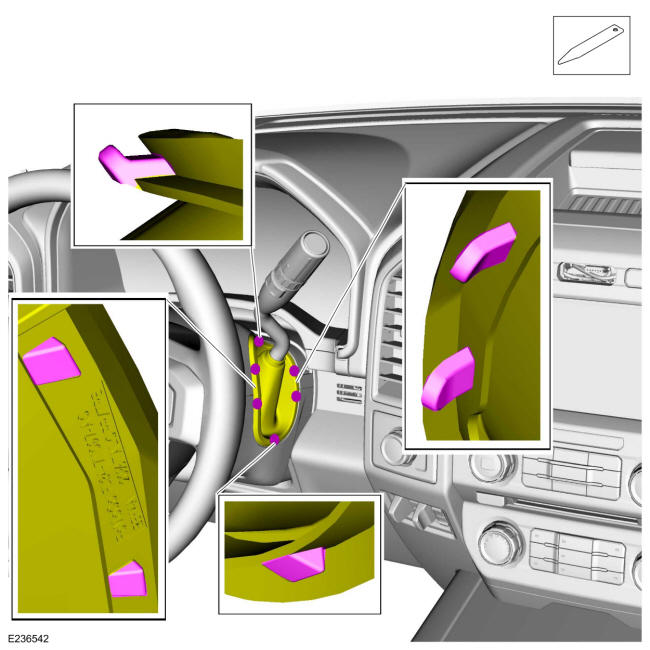

Release The Tabs And Position The Gear Selector Boot Aside.
Use The General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

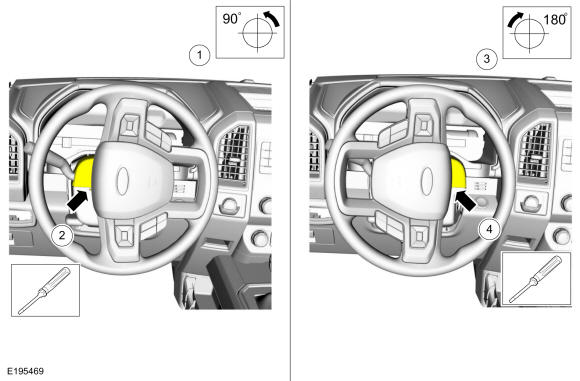

Release The Upper Steering Column Shroud Front Clips.
1. Rotate The Steering Wheel 90 Degrees To The Left.
2. Release The Lh Clip.
  Use The General Equipment: Flat-Bladed Screwdriver
3. Rotate The Steering Wheel 180 Degrees To The Right.
4. Release The Rh Clip.
  Use The General Equipment: Flat-Bladed Screwdriver
Courtesy of FORD MOTOR COMPANY

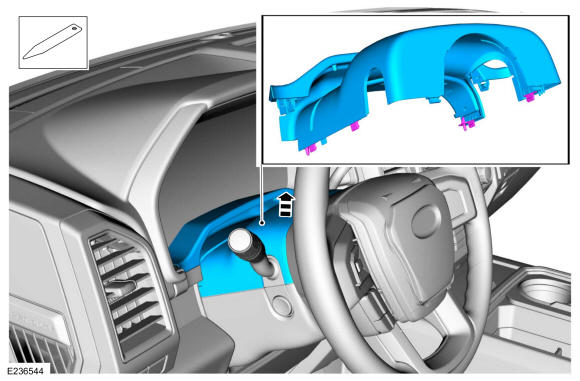

Release The Outer Clips On Each Side And Remove The Steering Column Upper Shroud.
Use The General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
If Equipped.Position The Manual Steering Column Adjust Lever In The Down Position.

Courtesy of FORD MOTOR COMPANY

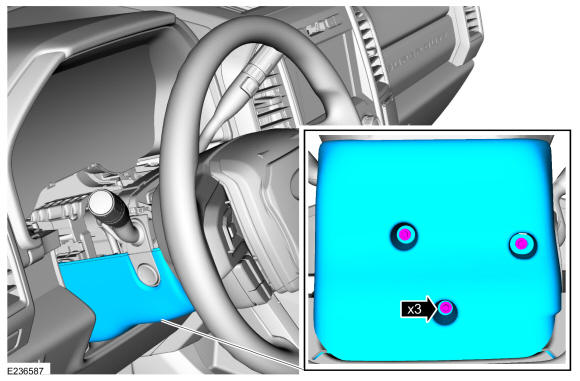

Remove The Bolts And The Lower Steering Column Shroud.

Courtesy of FORD MOTOR COMPANY
