Loadspace Trim Panel - Crew Cab Super Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Crew Cab Shown In Illustration, Super Cab Similar.
NOTE:
Removal Steps In This Procedure May Contain Installation Details.
- Release The Seat Latch And Fold The Rh Rear Seat Backrest Down.
- Release The Vehicle Jack Hook-And-Loop Strap.
- Remove The Vehicle Jack Assembly.
Super Cab
-
NOTE: During Installation, The Striker Should Be In Its Lowest Position For The Latch To Engage.
Lower The Lh Seat Backrest.
- Pull The Backrest Release Strap And Release The Latch From The Striker.
- Lower The Backrest.
- On Both Sides. Remove The B-Pillar Trim Panel. Refer to: b-Pillar Trim Panel - Super Cab .
Crew Cab
-
NOTE: The Seat Backrest Latch Is Only Accessible When The Seat Cushion Is Raised.NOTE: During Installation, The Striker Should Be In Its Lowest Position For The Latch To Engage.
Lower The Lh Rear Seat Backrest.
- Raise The Seat Cushion.
- Release The Backrest Latch.
- Lower The Backrest Down.
- On Both Sides. Remove The C-Pillar Trim Panel. Refer to: c-Pillar Trim Panel .
All Vehicles
- Remove The Center Seatbelt Rear Guide Cover.
- Remove The Center Seatbelt Front Guide Cover.
- Remove The Retainer.
Torque: 42 Lb.In (4.8 Nm)
- Position The Seatbelt Through The Slot And Remove The Cover.
- Remove The Retainer.
- If Equipped. Remove The Subwoofer Speaker. Refer to: Subwoofer Speaker
- Vehicles With: Sony Audio System.
Vehicles With Digital Signal Processing Module
- Remove The Dsp. Refer to: Audio Digital Signal Processing (Dsp) Module - Vehicles With: Sony Audio System.
- Release The Retainers And Position The Dsp Wiring Harness Aside.

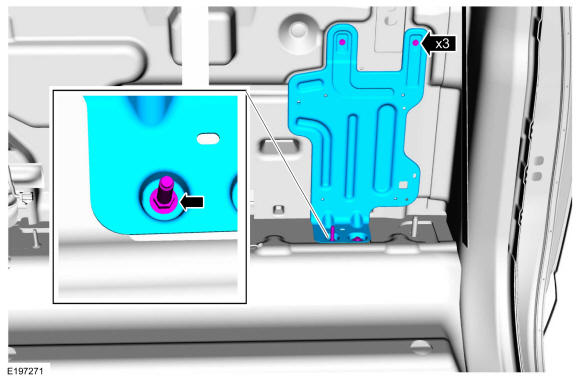

- Remove The Retainers And The Dsp Bracket.
All Vehicles
- Release The Pin-Type Retainers And Remove The Loadspace Trim Panel.
