C-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH Side Shown In Illustration, RH Side Similar.

NOTE: Removal Steps In This Procedure May Contain Installation Details.

NOTE: During Installation, Attach The Scuffplate Trim Panels At The Lower B-Pillar Trim Panel First.

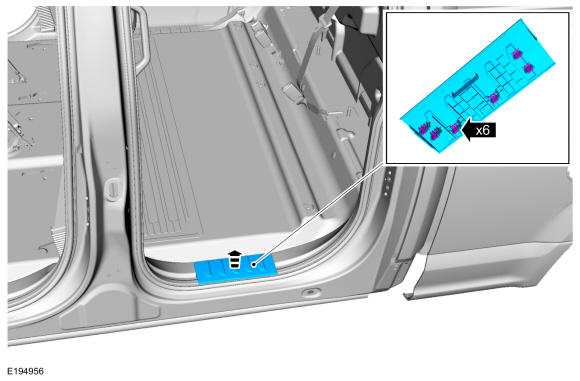

Release The Clips And Remove The Rear Door Scuffplate Trim Panel.

Courtesy of FORD MOTOR COMPANY

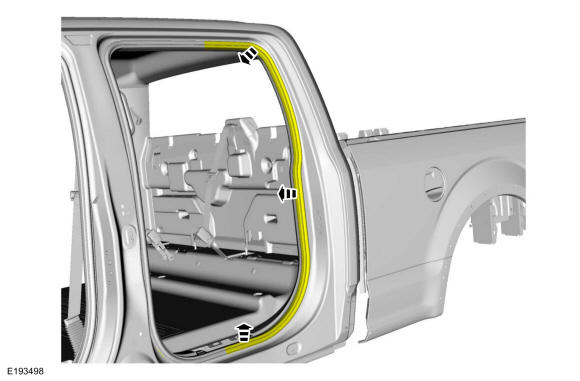

Position The Rear Door Weatherstrip Aside.

Courtesy of FORD MOTOR COMPANY

Vehicles Without Inflatable Seatbelts

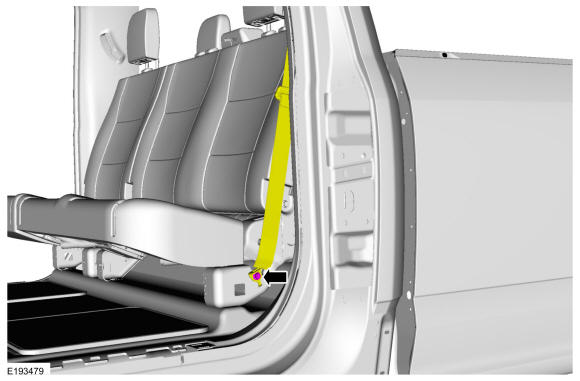

Remove The Bolt And The Position The Seatbelt Aside.
Torque: 30 Lb.Ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles With Inflatable Seatbelts
Remove The Bolt Cover.

Courtesy of FORD MOTOR COMPANY
Remove The Bolt And Separate The Seatbelt.
Torque: 44 Lb.In (5 Nm)

Courtesy of FORD MOTOR COMPANY

All Vehicles

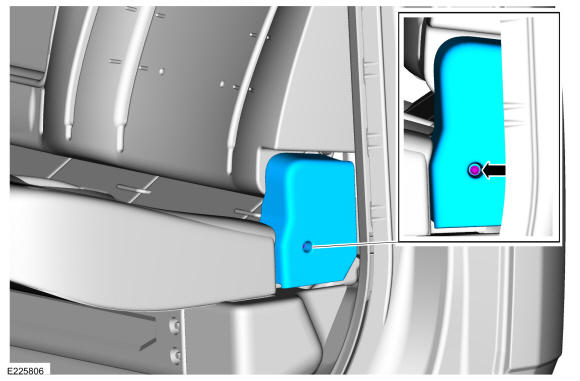

Remove The Retainer And The Outboard Cushion Side Shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If The Tether Clip Is Damaged During Removal, A New Clip Must Be Installed Prior To Installation Of The Trim Panel.

NOTE: During Installation, Install The Clip By The Scuffplate Trim Panel First And Work Upward On The Trim Panel To Connect The Other Clips.

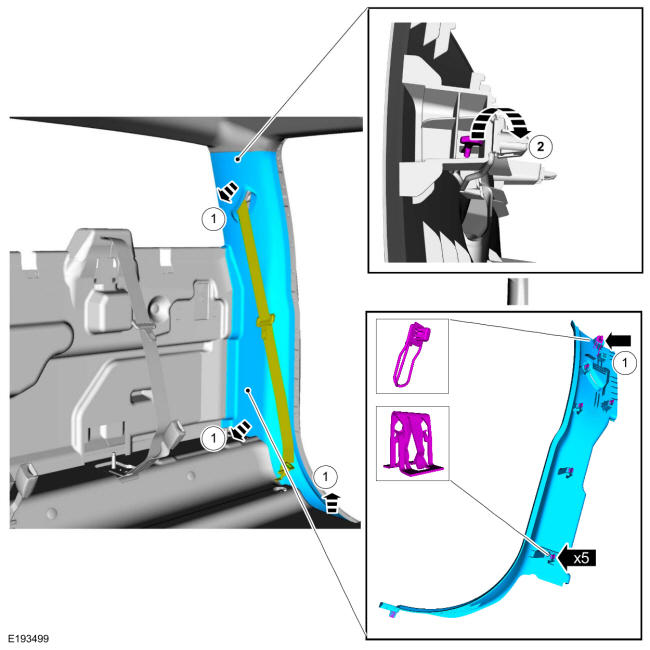

Remove The C-Pillar Trim Panel.
1. Release The Clips.
2. Release The Tether Clip.

Courtesy of FORD MOTOR COMPANY
