B-Pillar Trim Panel - Crew Cab: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH Side Shown In Illustration, LH Side Similar.

NOTE: Removal Steps In This Procedure May Contain Installation Details.

Upper And Lower B-Pillar Trim Panels

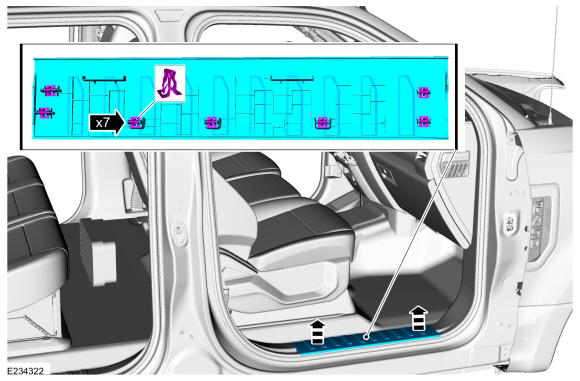

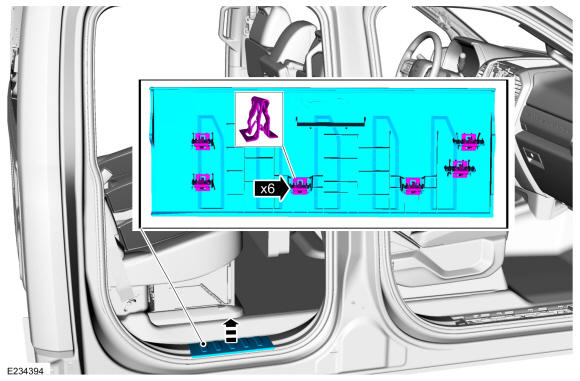

Release The Clips And Remove The Front Door Scuffplate Trim Panel.

Courtesy of FORD MOTOR COMPANY
Release The Clips And Remove The Rear Door Scuffplate Trim Panel.

Courtesy of FORD MOTOR COMPANY

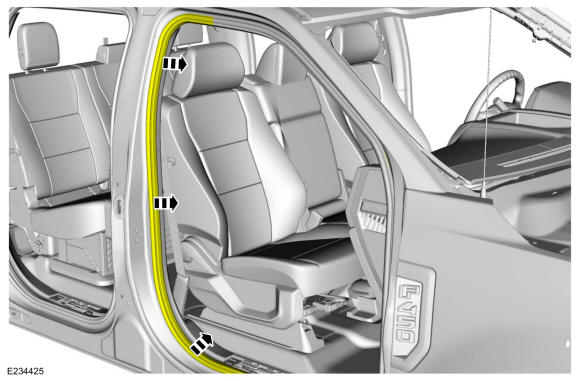

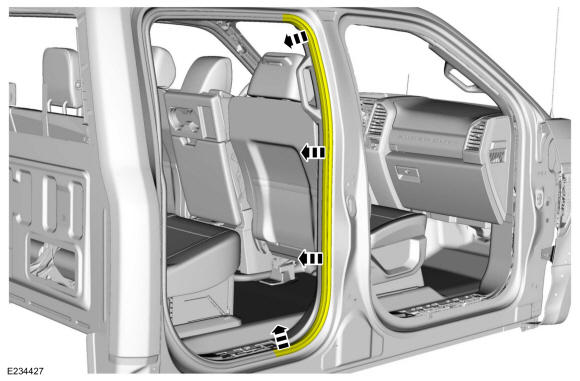

Position The Front Door Weatherstrip Aside.

Courtesy of FORD MOTOR COMPANY
Position The Rear Door Weatherstrip Aside.

Courtesy of FORD MOTOR COMPANY

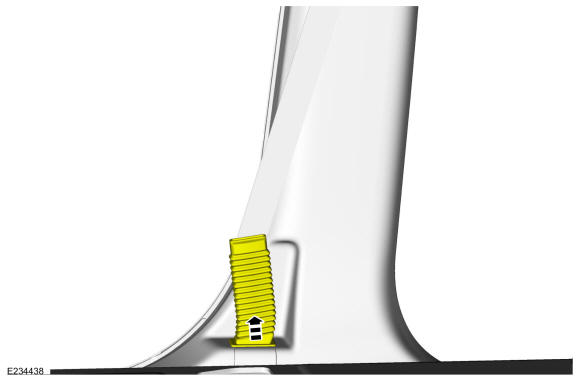

Disengage The Seatbelt Pretensioner Boot From The Pretensioner Bezel.

Courtesy of FORD MOTOR COMPANY

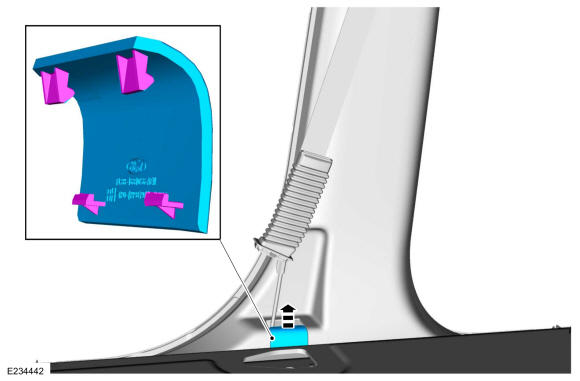

Remove The Pretensioner Bezel.

Courtesy of FORD MOTOR COMPANY

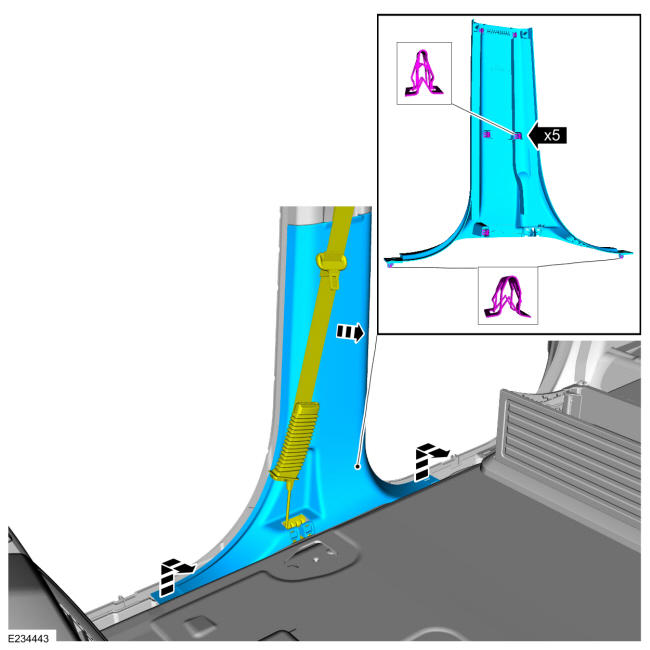

Release The Clips, Position The Seatbelt Aside And Remove The Lower B-Pillar Trim Panel.

Courtesy of FORD MOTOR COMPANY

Upper B-Pillar Trim Panel

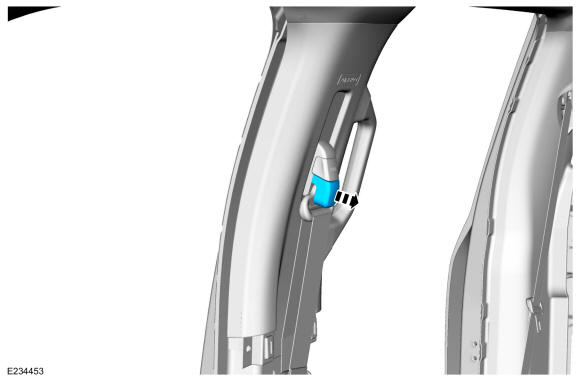

Remove The D-Ring Bolt Cover.

Courtesy of FORD MOTOR COMPANY
Remove The D-Ring Bolt And Position The Seatbelt Aside.
Torque: 30 Lb.Ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

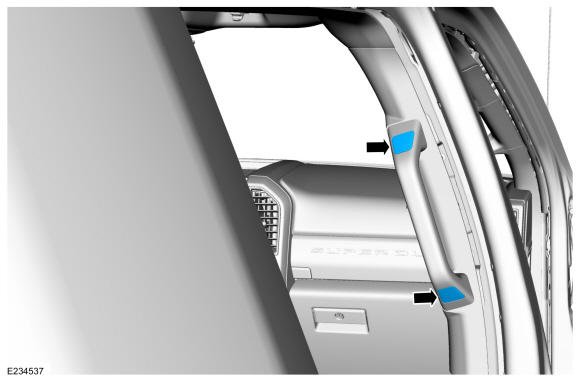

Remove The Assist Handle Bolt Covers.

Courtesy of FORD MOTOR COMPANY

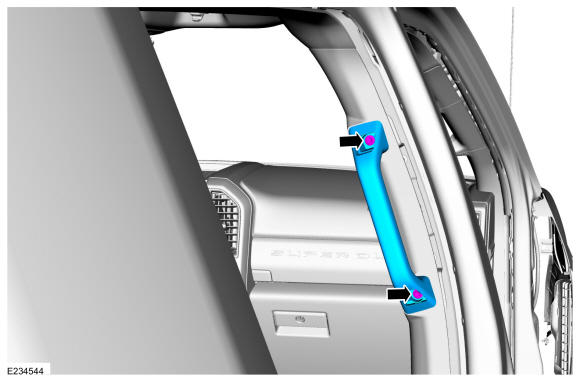

Remove The Bolts And The Assist Handle.
Torque: 106 Lb.In (12 Nm)

Courtesy of FORD MOTOR COMPANY

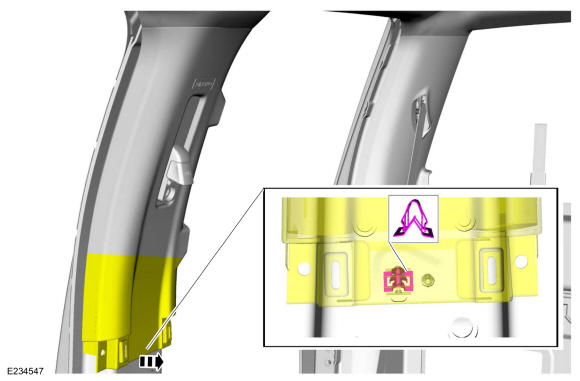

Release The Upper B-Pillar Trim Panel Panel Lower Clip.

Courtesy of FORD MOTOR COMPANY

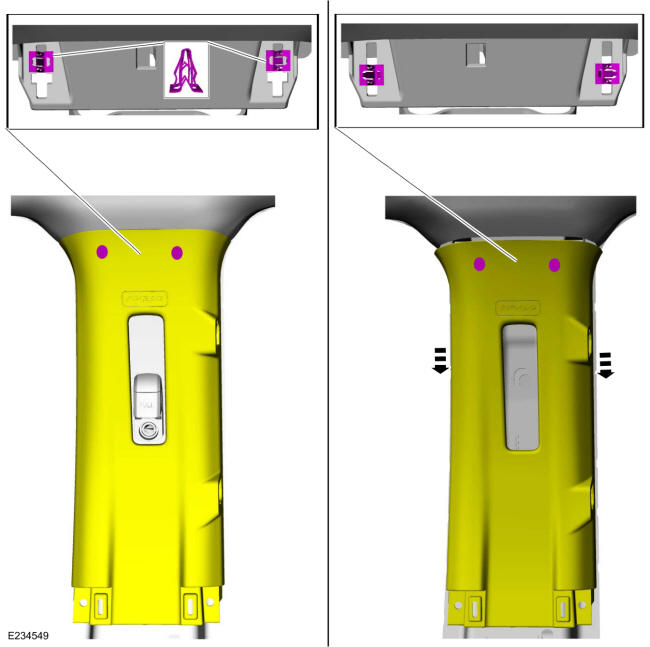

NOTE: The Trim Panel Must Be Positioned Downward To Allow The Upper Clips To Release Correctly. Failure To Follow This May Cause Damage To The Trim Panel.

Slide The Upper B-Pillar Trim Panel Down, Aligning The Clips To The Slots In The Sheet Metal.

Courtesy of FORD MOTOR COMPANY

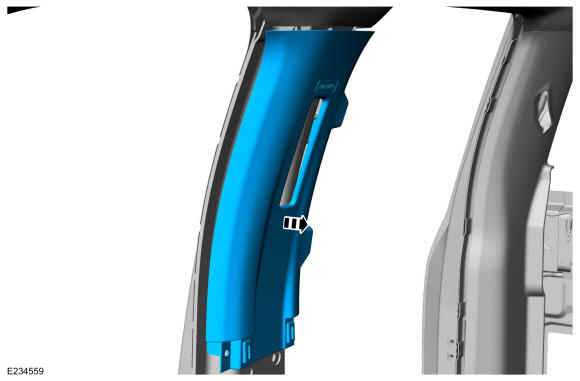

Remove The Upper B-Pillar Trim Panel.

Courtesy of FORD MOTOR COMPANY
