A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH Side Shown In Illustration, LH Side Similar.

NOTE: Removal Steps In This Procedure May Contain Installation Details.

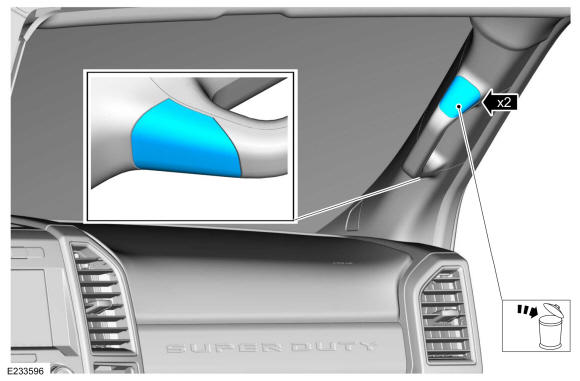

Remove And Discard The Assist Handle Bolt Covers.

Courtesy of FORD MOTOR COMPANY

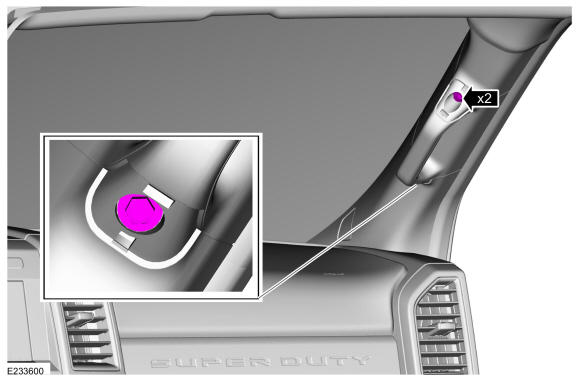

Remove The Assist Handle Bolts.
Torque: 55 Lb.In (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

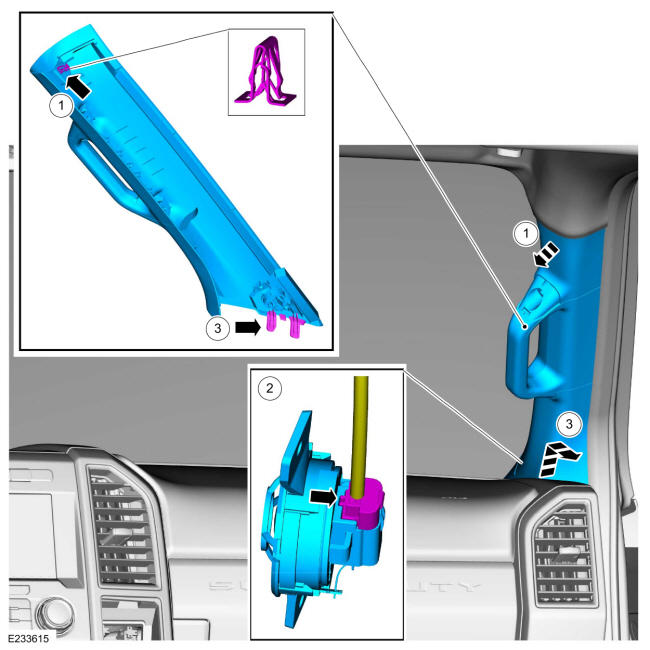

Remove The A-Pillar Trim Panel.
1. Release The Clip.
2. If Equipped. Disconnect The Speaker Electrical Connector.
3. Lift Up And Outward And Release The Lower Tabs.

Courtesy of FORD MOTOR COMPANY
