Electric Brake Booster (EBB): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.

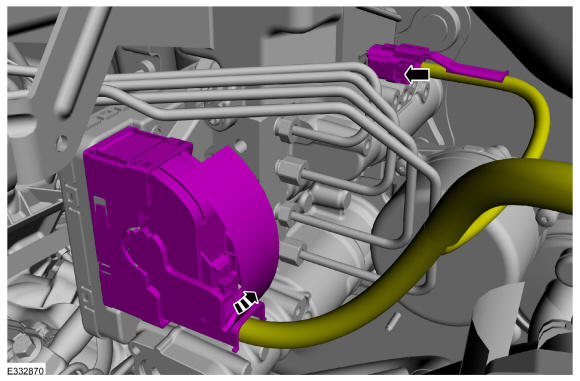

Disconnect the ABS module and brake fluid level sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: If the brake fluid is spilled on any component, the affected area must be immediately washed down with cold water.

NOTE: Make sure that all openings are sealed.

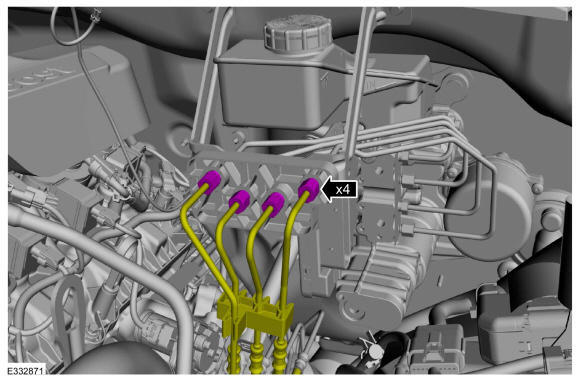

Disconnect the brake tube fittings.

Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
1. Disconnect the brake tube fittings.
  Torque

  : 159 lb.in (18 Nm)

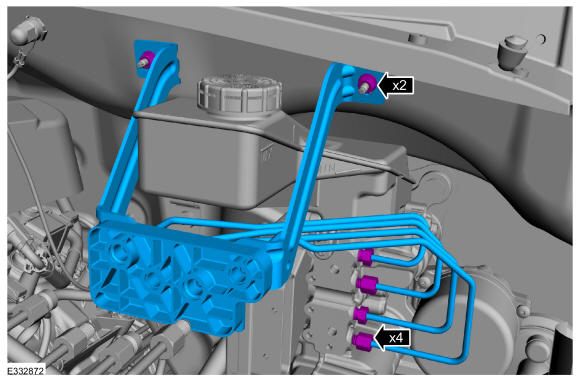

2. Remove the nuts and the brake tube assembly.
  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

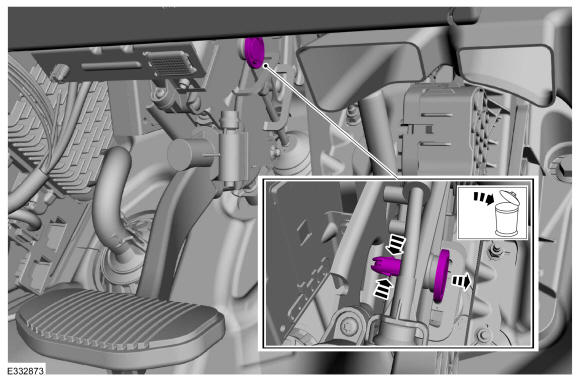

Push inward on the tabs and remove the clevis pin. Discard the pin.

Courtesy of FORD MOTOR COMPANY

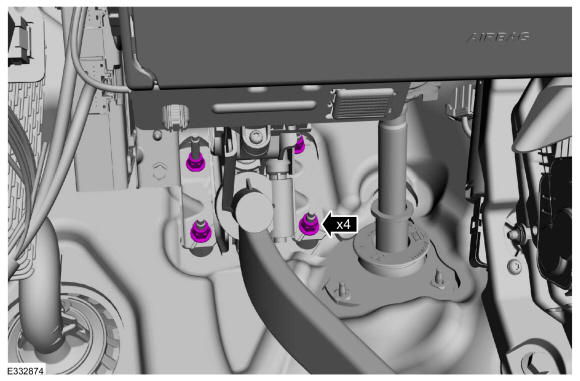

Remove the EBB nuts.
Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

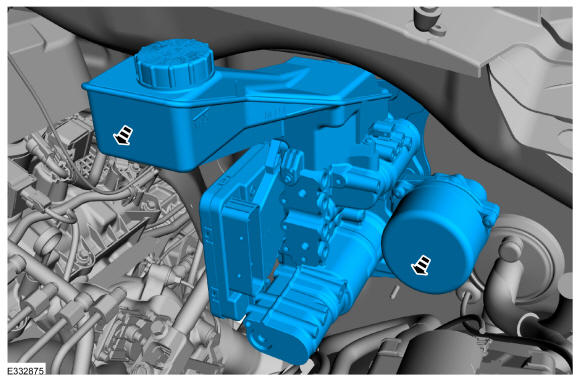

Remove the EBB.

Courtesy of FORD MOTOR COMPANY

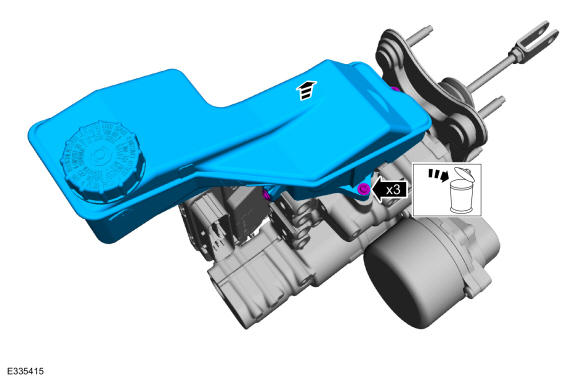

Remove the screws and the brake fluid reservoir. Discard the screws.

Courtesy of FORD MOTOR COMPANY

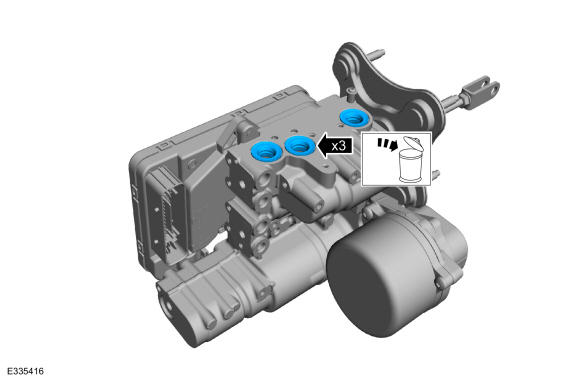

Remove and discard the brake fluid reservoir seals.

Courtesy of FORD MOTOR COMPANY
