Electric Brake Booster (EBB): Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

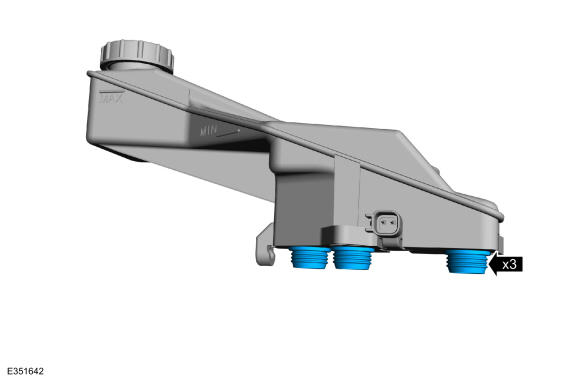

- Install the new brake fluid reservoir seals on the brake fluid reservoir before installing the reservoir.
- To install, reverse the removal procedure.
- Using a diagnostic scan tool, complete the PMI process for the ABS module following the on-screen instructions.
- Carry out the ABS Calibration and the Brake System Pressure Bleeding service functions using the scan tool and following the diagnostic scan tool on-screen instructions.
- Run the PCMPATS programming application and then carry out the Module Initialization (Parameter Reset) using the scan tool and following the scan tool on-screen instructions.
