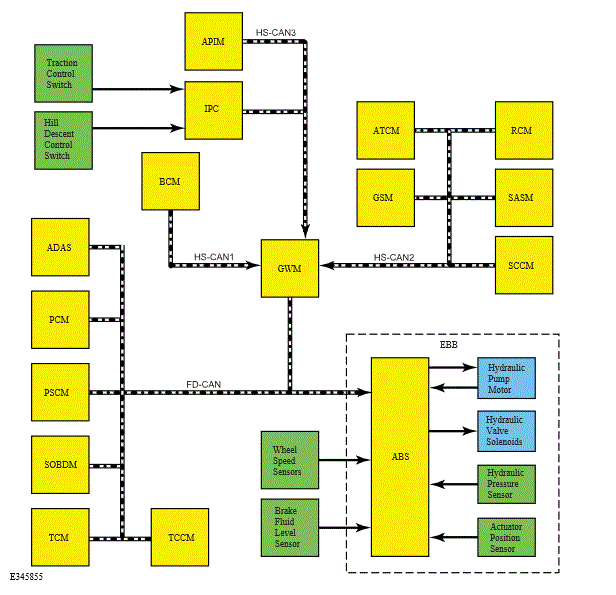

ABS and Stability Control

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
G00604274Courtesy of FORD MOTOR COMPANY
