Removal And Installation: Hood: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

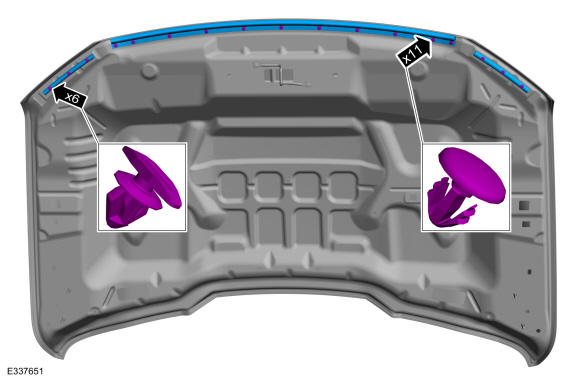

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Remove the retainers and hood insulation.

Courtesy of FORD MOTOR COMPANY

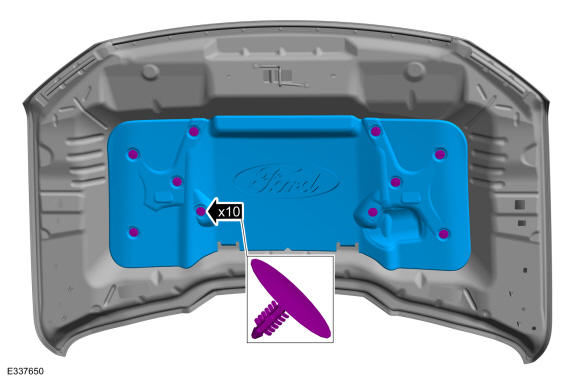

NOTE: This step is only necessary when installing a new component.

Remove the retainers and the hood pad assembly.

Courtesy of FORD MOTOR COMPANY

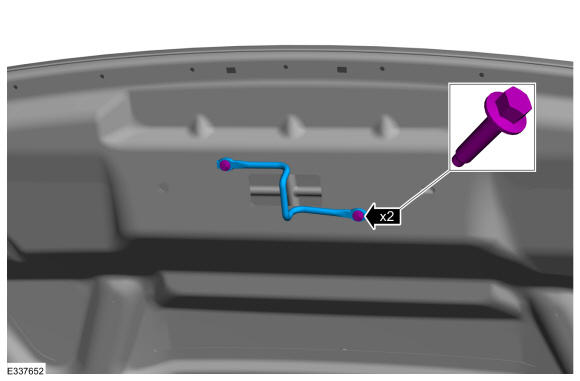

NOTE: This step is only necessary when installing a new component.

Remove the striker latch to hood bolts and the striker latch.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

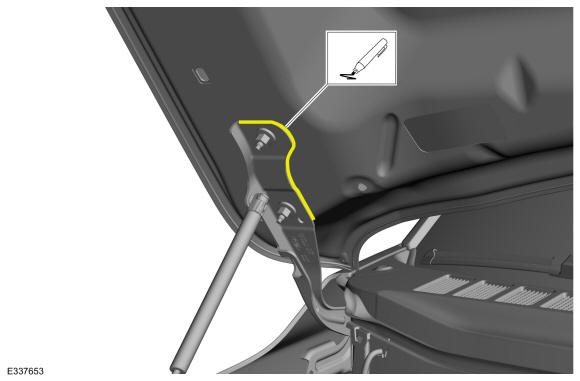

NOTE: RH side shown in illustration, LH side similar.

Index-mark the hood hinge location to aid in hood installation.

Courtesy of FORD MOTOR COMPANY

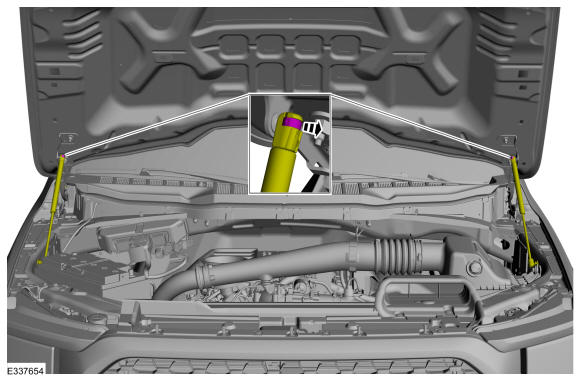

NOTE: Support the hood before removing the strut. Failure to follow this direction may result in damage to the components.

NOTE: Use the correct service parts when replacing the hood struts. The hood struts are not interchangeable and using the incorrect service part will result in damage to components.

Release the clips and position aside the struts.

Courtesy of FORD MOTOR COMPANY

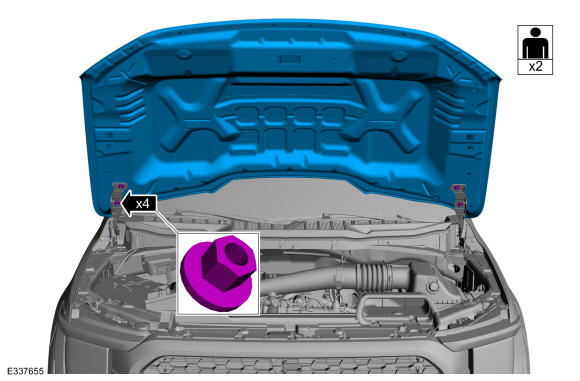

NOTE: An assistant is necessary for the removal of the hood.

Remove the nuts and the hood.

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
