Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

Remove the fender splash shield. Refer to: Fender Splash Shield .

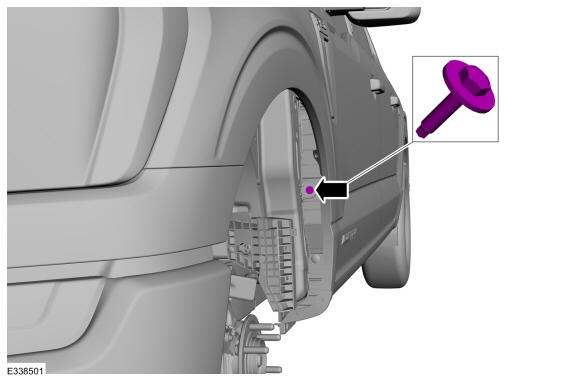

Remove the bolt.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

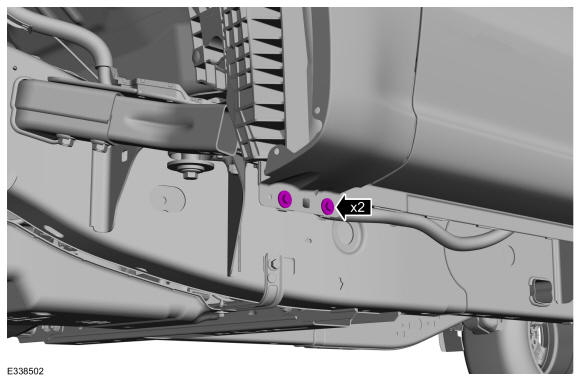

Remove the bolts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

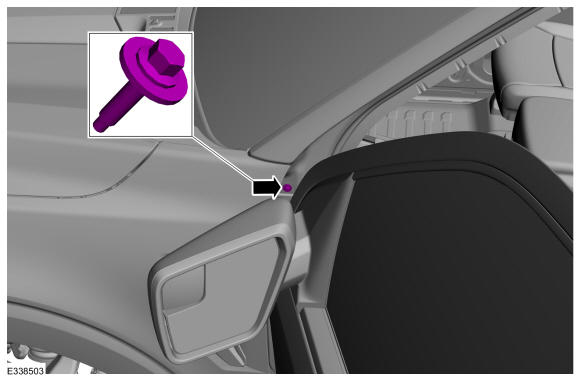

Remove the bolt.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

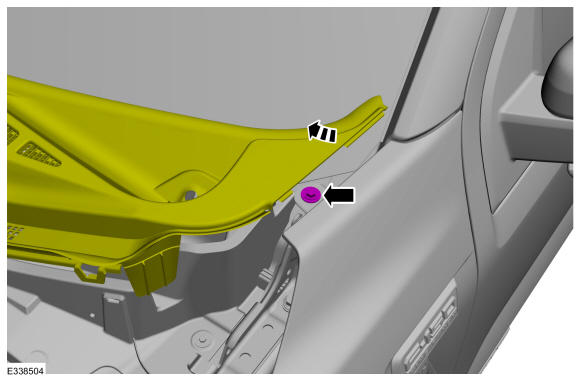

Lift the corner of the cowl panel grille and remove the bolt.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the headlamp assembly. Refer to: Headlamp Assembly .

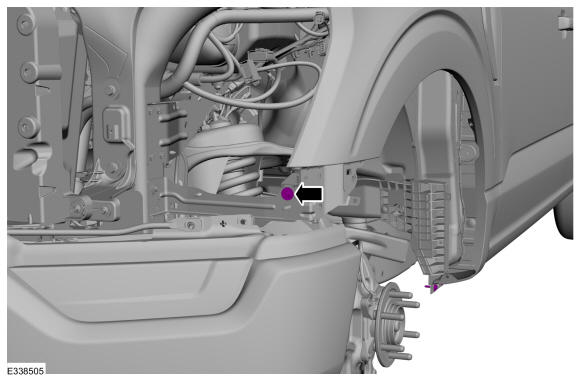

Remove the bolt.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

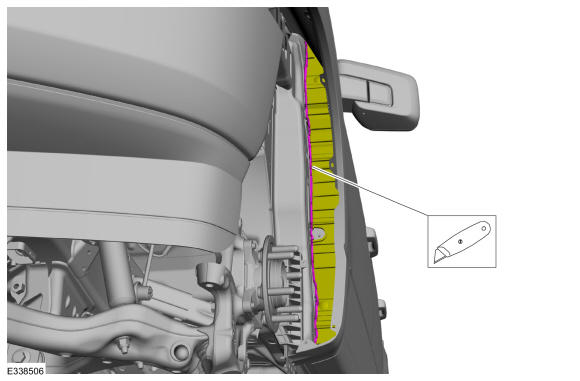

Using a knife, cut the foam sealant between the fender and the body. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY

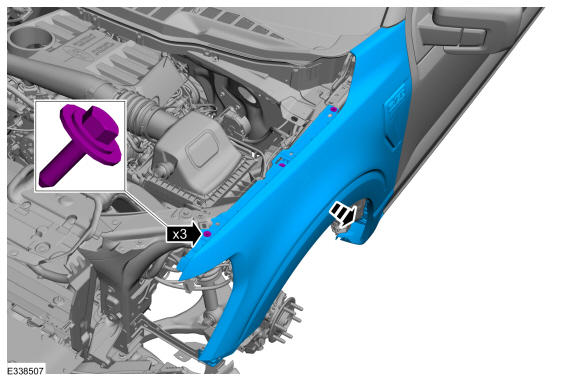

Remove the bolts and the fender.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

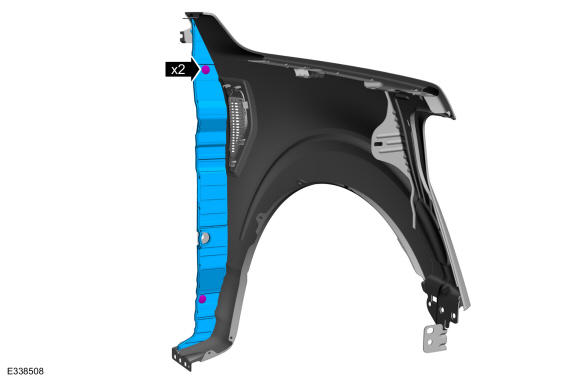

Remove the push pins and the expandable foam baffle.

Courtesy of FORD MOTOR COMPANY
