Engine Rear Undershield: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Support the engine rear undershield while the fasteners are being removed and installed. Do not support the engine rear undershield by any less than the total number of fasteners at any time.

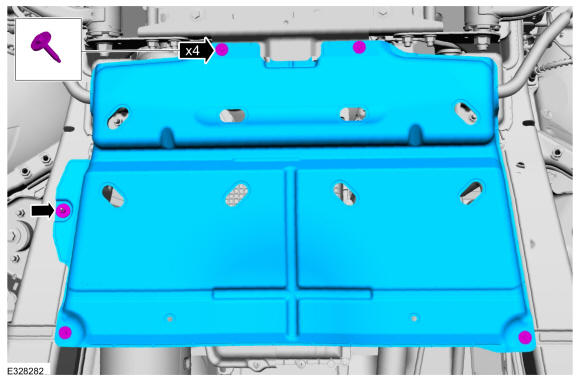

Holding the shield in its correct position, remove the fasteners and the engine rear undershield.
Torque
: 71 lb.in (8 Nm)
3.0L Power Stroke Diesel
-
NOTE: Support the engine rear undershield while the fasteners are being removed and installed. Do not support the engine rear undershield by any less than the total number of fasteners at any time.

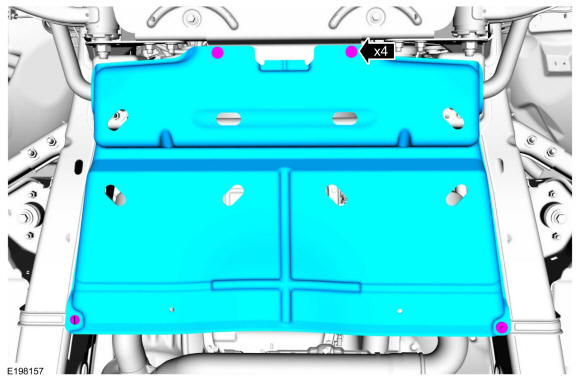

Holding the shield in its correct position, remove the fasteners and the engine rear undershield.
Torque
: bolt: 71 lb.in (8 Nm)
nut: 71 lb.in (8 Nm)
