Engine Front Undershield: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

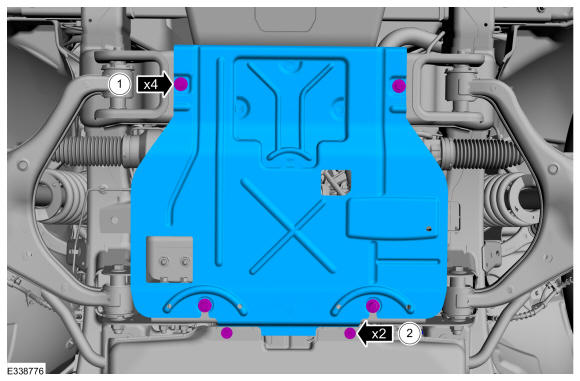

If equipped Remove the bolts and the underbody skid plate.
Torque

: 1: 30 lb.ft (40 Nm)

2: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: 4X2 vehicle shown in illustration, 4X4 vehicle similar.

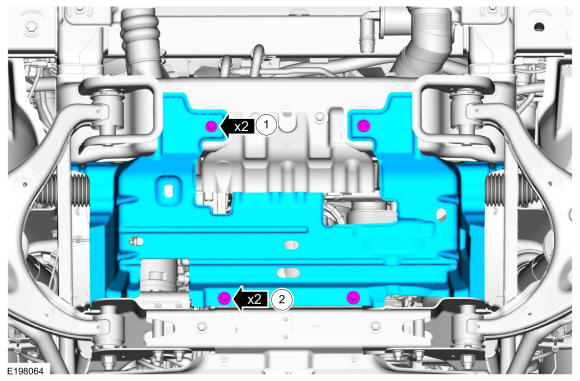

If equipped, Remove the bolts and the underbody skid plate.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

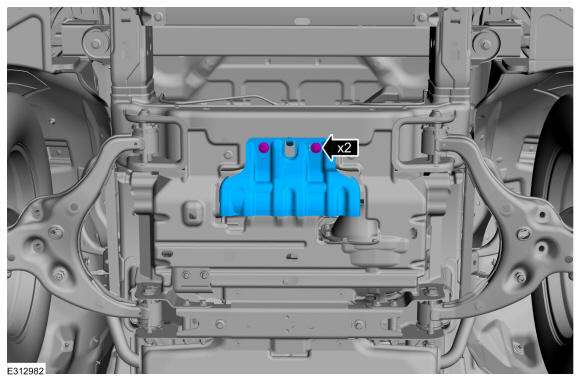

Remove the bolts and the engine front undershield.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
