Cowl Panel: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel grille. Refer to: Cowl Panel Grille .

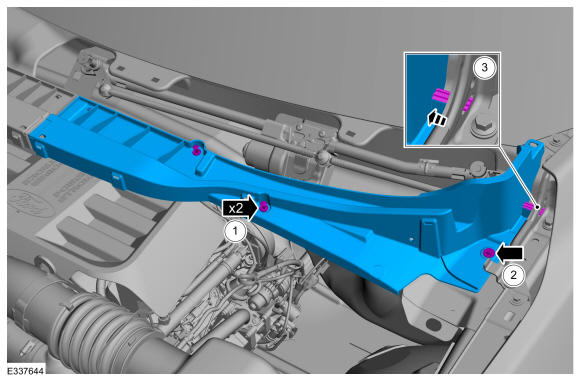

1. Remove the pin type retainers.
2. Remove the screw.
  Torque

  : 28 lb.in (3.2 Nm)
3. Slide out and remove the LH side cowl panel.
Courtesy of FORD MOTOR COMPANY

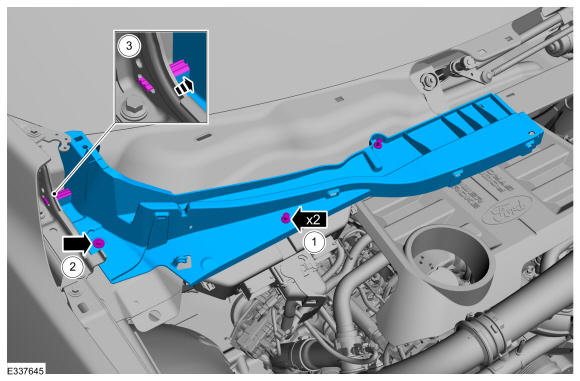

1. Remove the pin type retainers.
2. Remove the screw.
  Torque

  : 28 lb.in (3.2 Nm)
3. Slide out and remove the LH side cowl panel.

Courtesy of FORD MOTOR COMPANY
