Cowl Panel Grille: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Both sides

  1. Remove the wiper pivot arm. Refer to: Windshield Wiper Pivot Arm .

    LH side

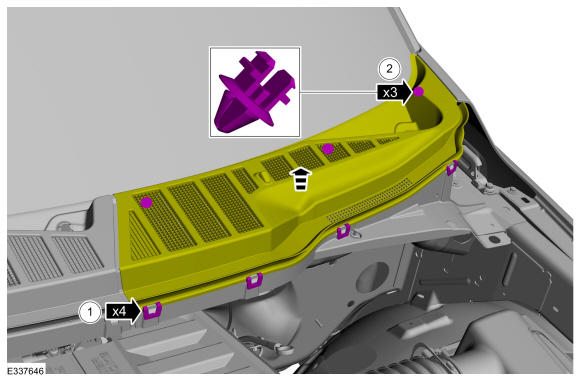

    1. Release the tabs.
    2. Lift the cowl trim panel to release the underside pin-type retainers.
    GFD561231Courtesy of FORD MOTOR COMPANY

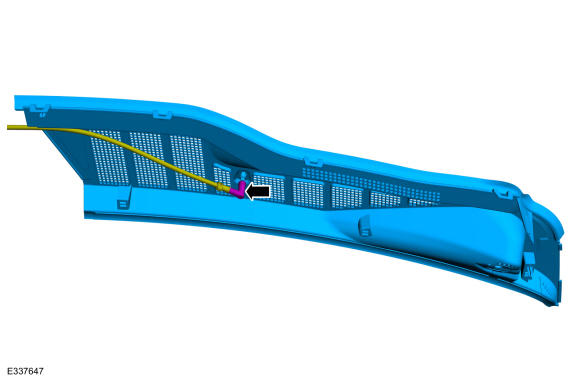

  3. Disconnect the windshield washer tube and remove the cowl panel grille.
    GFD561232Courtesy of FORD MOTOR COMPANY

    RH side

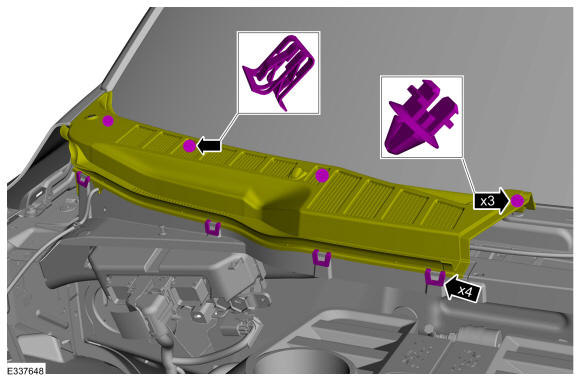

    • Release the tabs.

    • Lift the cowl trim panel to release the underside pin-type retainers.

    GFD561233Courtesy of FORD MOTOR COMPANY

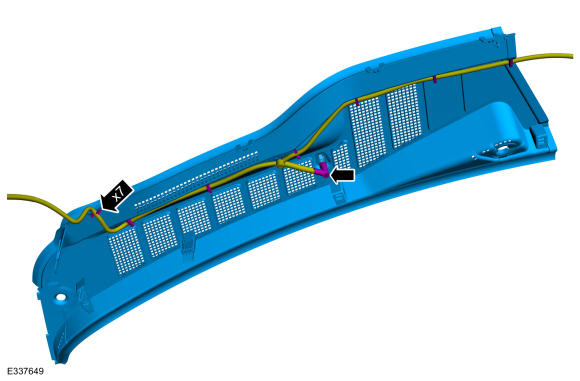

  5. Disconnect the windshield washer tube and remove the cowl panel grille.
GFD561234Courtesy of FORD MOTOR COMPANY
