Active Grille Shutter: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Upper active grille shutter

Remove the radiator grille. Refer to: Radiator Grille .

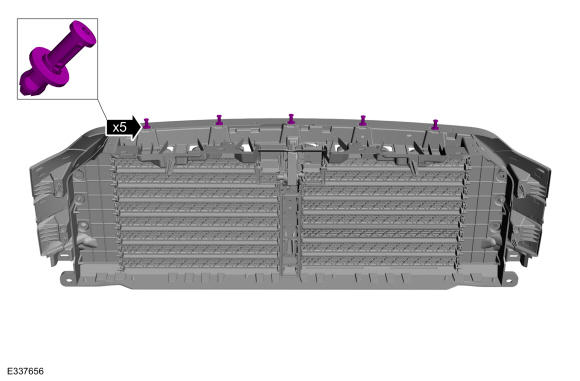

Remove the push pins.

Courtesy of FORD MOTOR COMPANY

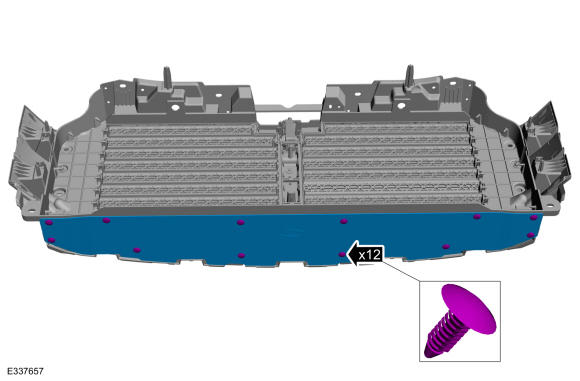

Remove the retainers and the deflector.

Courtesy of FORD MOTOR COMPANY

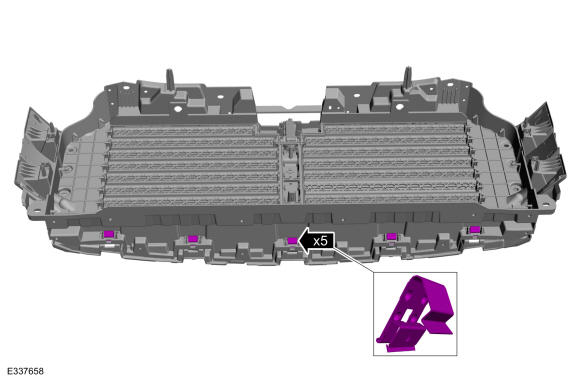

Remove the clips.

Courtesy of FORD MOTOR COMPANY

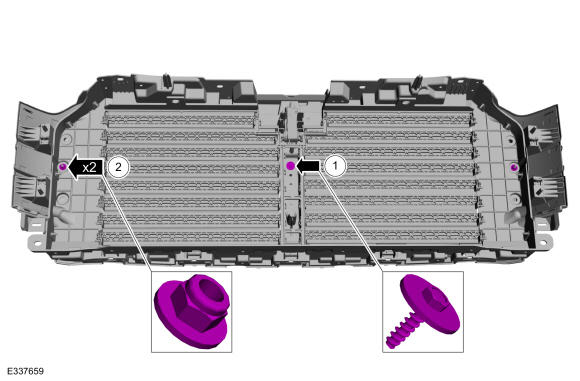

Remove the screw and the nuts.
Torque

: 1: 22 lb.in (2.5 Nm)

2: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

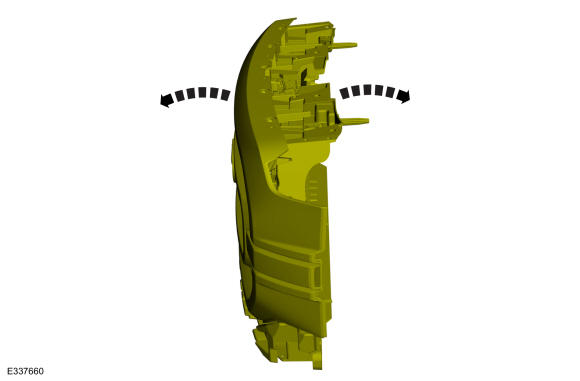

Separate the active grille shutter from the radiator grille.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with front camera.

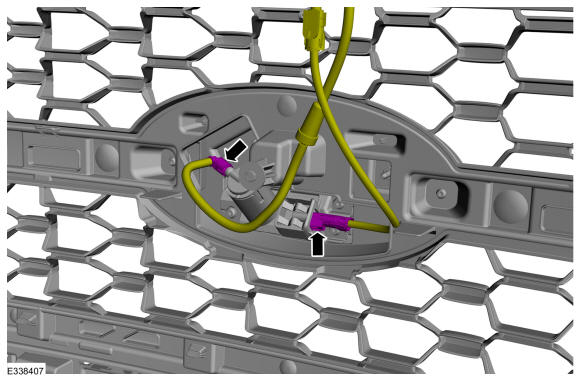

Disconnect the electrical connector and the washer hose.

Courtesy of FORD MOTOR COMPANY

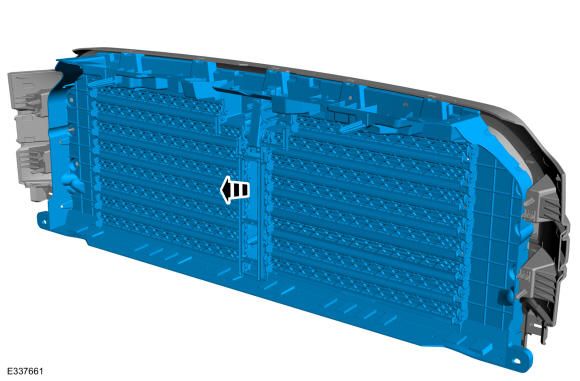

Remove the upper active grille shutter.

Courtesy of FORD MOTOR COMPANY

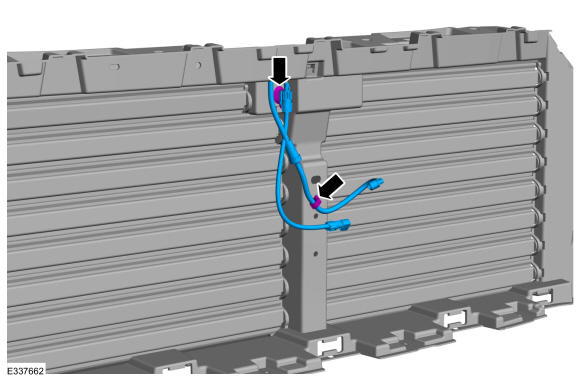

If equipped. Remove the pin-type retainers and the wire harness.

Courtesy of FORD MOTOR COMPANY

Lower active grille shutter
Remove the front bumper. Refer to: Front Bumper .

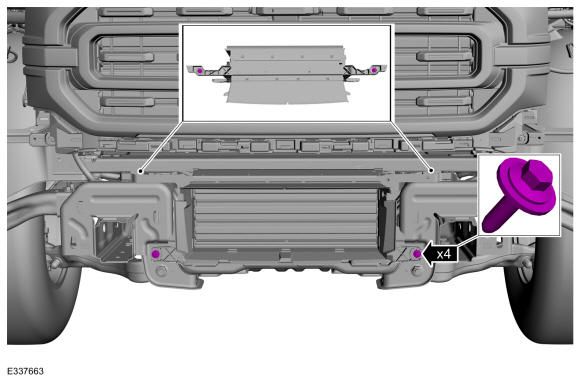

Remove the bolts.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

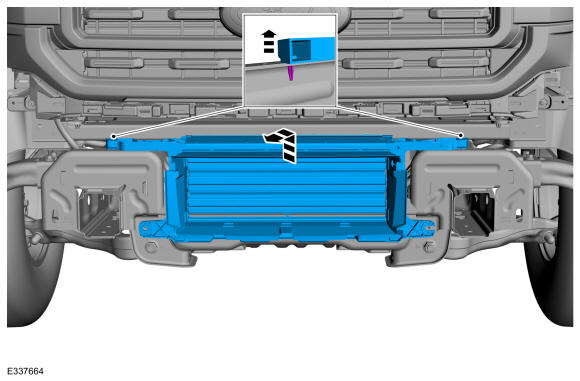

Pull up and remove the lower active grille shutter

Courtesy of FORD MOTOR COMPANY
