Front Brake Pads: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
- Remove the wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

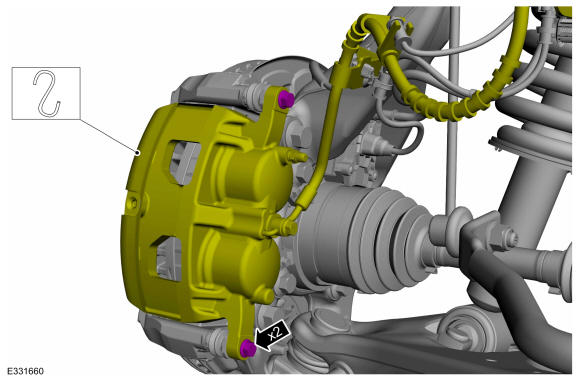

Remove the bolts and position the brake caliper aside.
Torque
: 27 lb.ft (36 Nm)

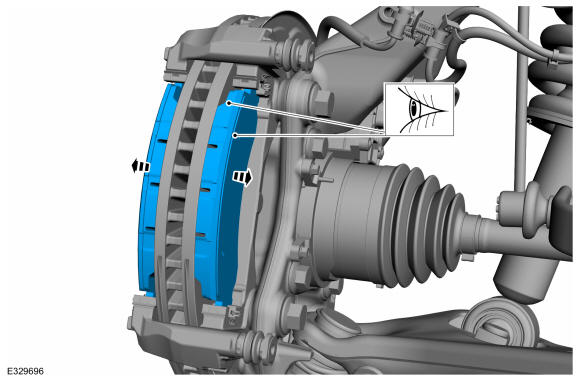

- Remove the brake pads.

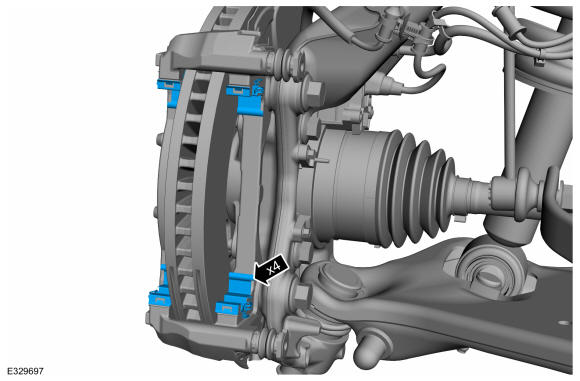

- Remove the brake pad clips. Discard if installing new brake pads.
-
NOTE: Protect the caliper pistons and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.

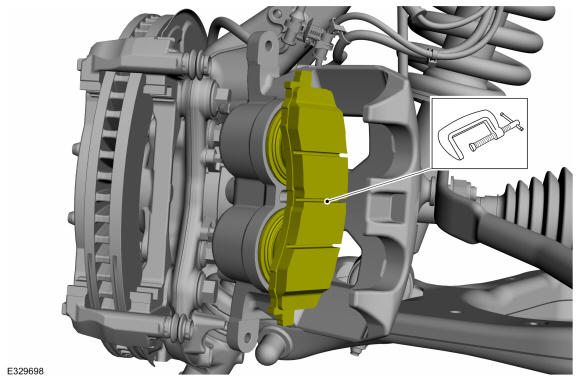

If installing new brake pads. Use a C-clamp and a worn brake pad to compress the disc brake caliper pistons into the brake caliper bore.
