Integrated Wheel End (IWE): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Left side IWE

  1. Remove the LH side wheel knuckle. Refer to: Wheel Knuckle .

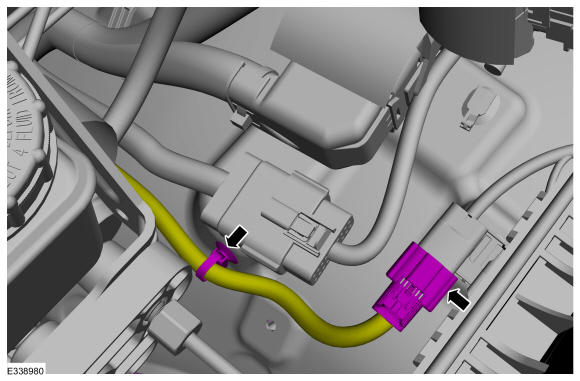

  2. Disconnect the IWE electrical connector and detach the wiring harness retainer.
    GFD559847Courtesy of FORD MOTOR COMPANY

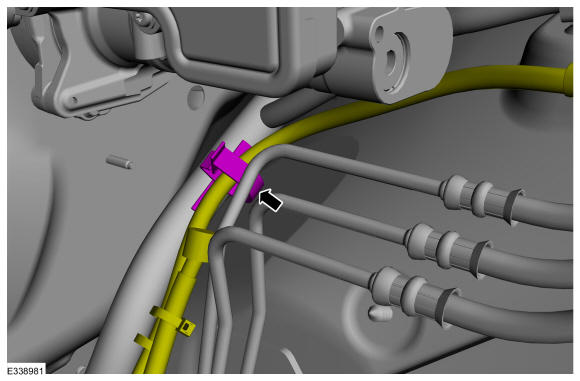

  3. Detach the wiring harness retainer.
    GFD559848Courtesy of FORD MOTOR COMPANY

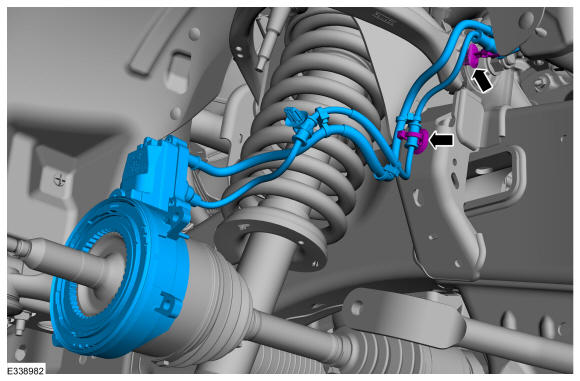

    • Detach the wiring harness retainers.

    • Remove the IWE.

    GFD559849Courtesy of FORD MOTOR COMPANY

    Right side IWE

  5. Remove the RH side wheel knuckle. Refer to: Wheel Knuckle .

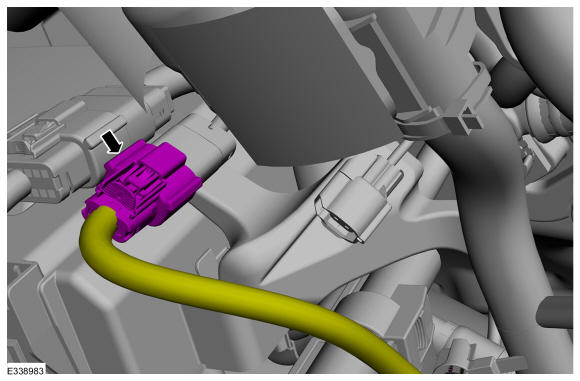

  6. Disconnect the IWE electrical connector and detach the wiring harness retainer.
    GFD559850Courtesy of FORD MOTOR COMPANY

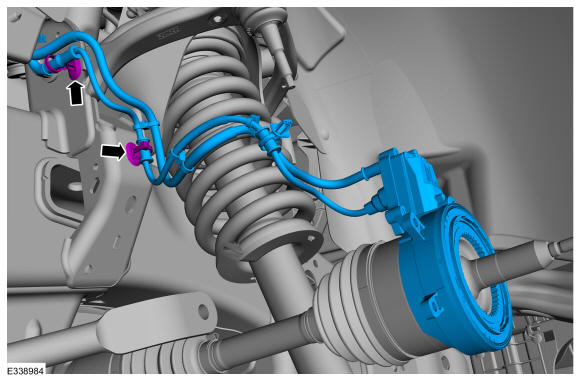

    • Detach the wiring harness retainers.

    • Remove the IWE.

GFD559851Courtesy of FORD MOTOR COMPANY
