All Terrain Control Module (ATCM) - Vehicles Without: Center Console: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

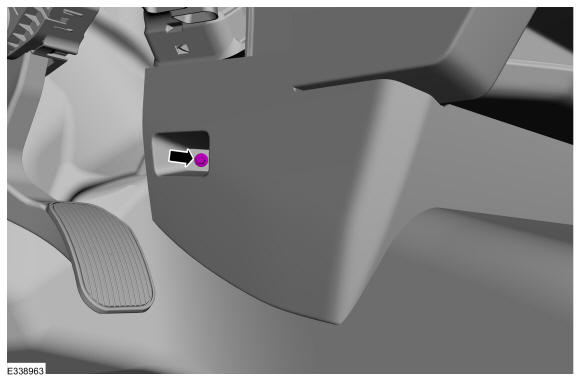

- Remove the instrument panel lower trim panel bolt.
Torque: 22 lb.in (2.5 Nm)

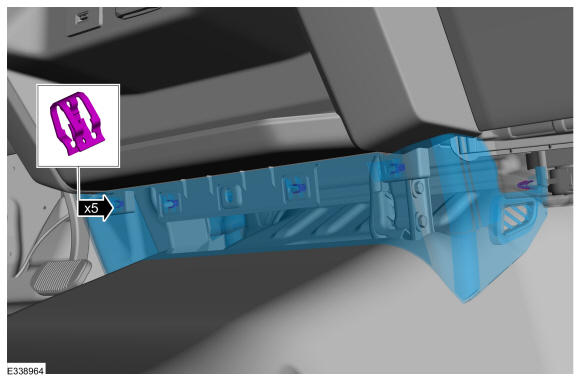

- Release the clips and remove the instrument panel lower trim panel. Remove the General Equipment: Interior Trim Remover

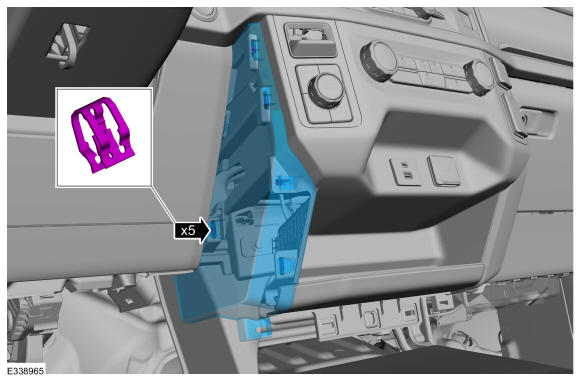

- Release the clips and remove the LH lower centerstack trim panel. Remove the General Equipment: Interior Trim Remover

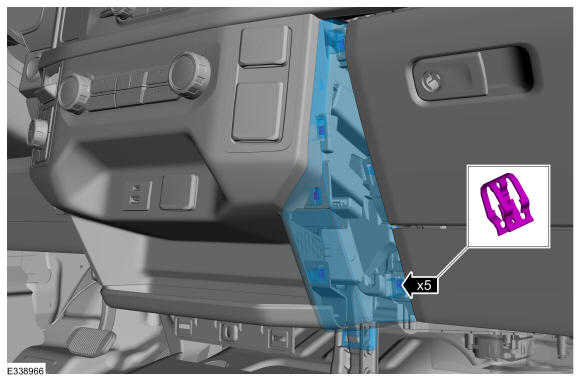

- Release the clips and remove the RH lower centerstack trim panel. Remove the General Equipment: Interior Trim Remover

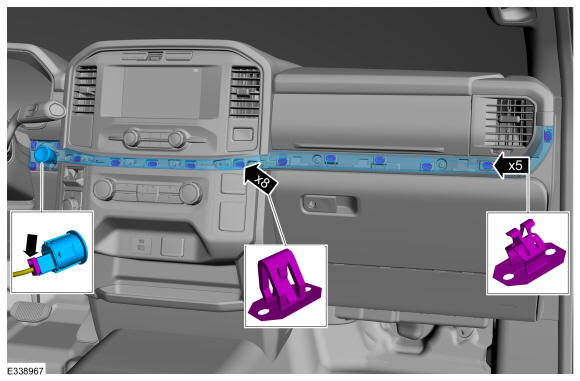

- Release the clips and remove the RH instrument center trim panel.
- On vehicles equipped with push button start disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

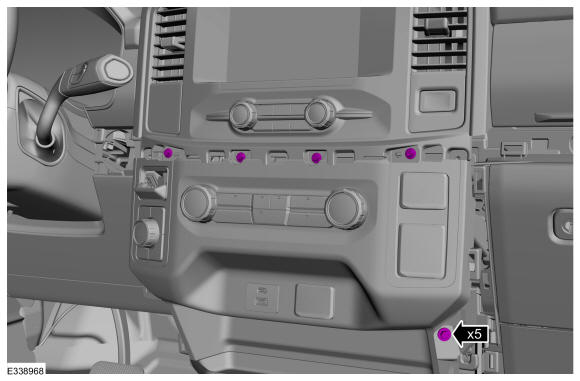

- Remove the lower centerstack trim panel bolts.
Torque: 22 lb.in (2.5 Nm)
-

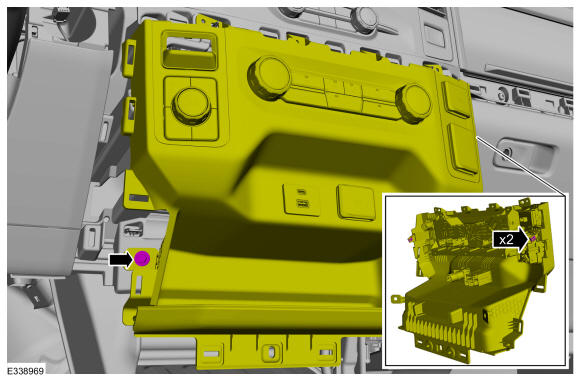

- Remove the bolt.
Torque: 22 lb.in (2.5 Nm)
- Release the clips and position aside the lower centerstack trim panel. Use the General Equipment: Interior Trim Remover
- Remove the bolt.

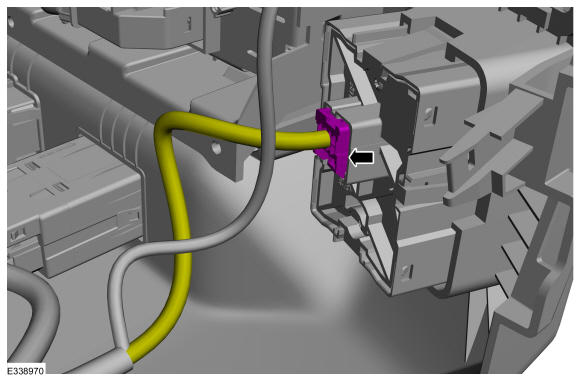

- Disconnect the electrical connector.

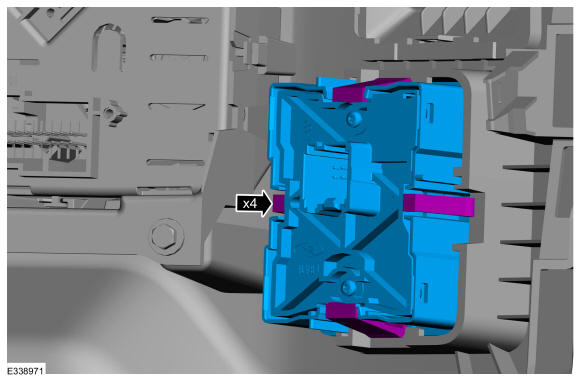

- Carefully pry the ATCM from the centerstack trim panel.
