Differential Housing Cover: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped. Remove the bolts and the skid plate.
- Remove the bolts and the engine oil pan skid plate.
- If equipped.

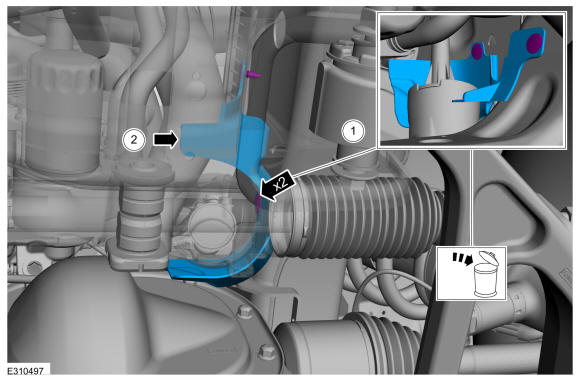

- Remove and discard the push pins.
- Remove the steering gear shield from the frame rail.

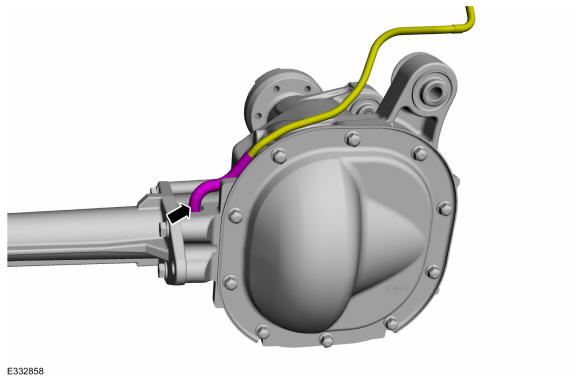

- Disconnect the front differential breather hose and position aside.

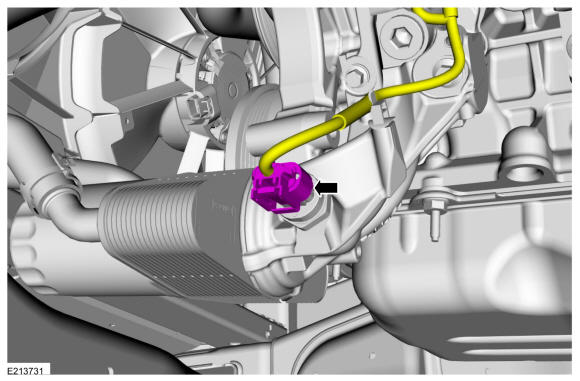

- If equipped. Disconnect the EOP sensor electrical connector.
- Remove the differential cover bolts and differential cover.
