Axle Tube Bearing: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the axle shaft seal. Refer to: Axle Shaft Seal .
-
NOTE: Right side shown, left side similar.

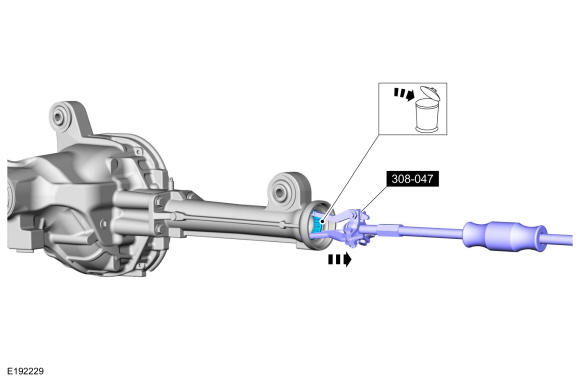

Using special tool and a slide hammer, remove and discard the axle shaft pilot bearing. Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup.Use the General Equipment: Slide Hammer
