Axle Shaft Seal: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the halfshaft. Refer to: Halfshaft .
-
NOTE: Right side only.
Using the special tool and a slide hammer, remove the axle shaft. Use Special Service Tool: 307-397 Remover, Transmission Fluid Pump.Use the General Equipment: Slide Hammer
-

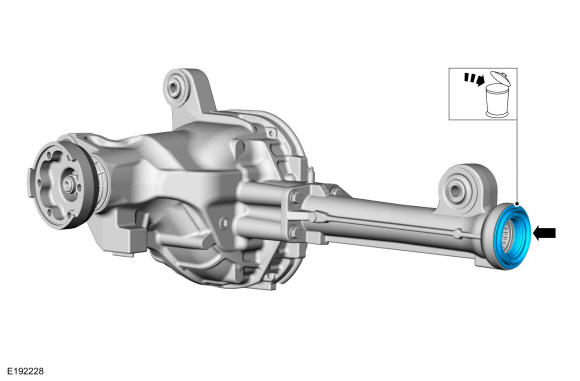

NOTE: Right side shown, left side similar.
Remove and discard the axle shaft seal.
