Axle Shaft Seal: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Replace the axle shaft circlips.

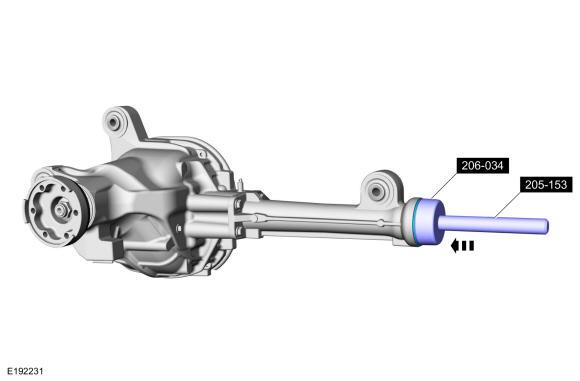

- Using the special tools, install the new axle shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 206-034 (T88P-20202-B) Installer, Wheel Speed Sensor Ring.
-
NOTE: The axle shaft is not fully seated until the circlip is engaged with the differential side gear.
Install the axle shaft.
- Install the halfshafts. Refer to: Halfshaft .
