Rear Brake Pads: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
Remove the wheel and tire. Refer to: Wheel and Tire .
Disconnect the EPB actuator motor electrical connector and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

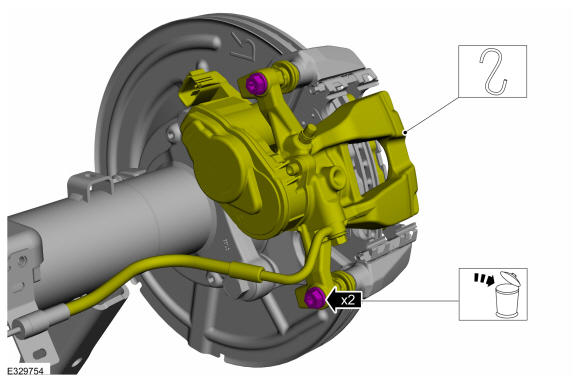

Remove the bolts and position the brake caliper aside. Discard the bolts.

Torque

: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

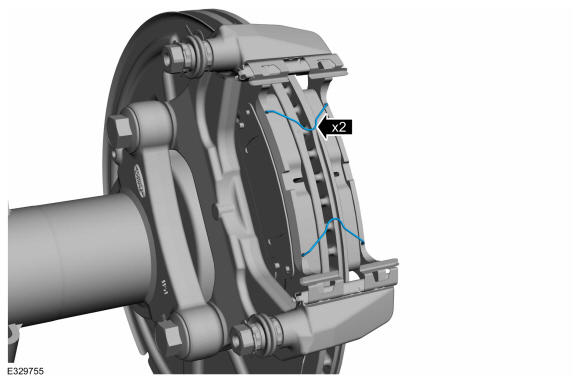

Remove the brake pad holding clips.

Courtesy of FORD MOTOR COMPANY
Remove the brake pads.

Courtesy of FORD MOTOR COMPANY

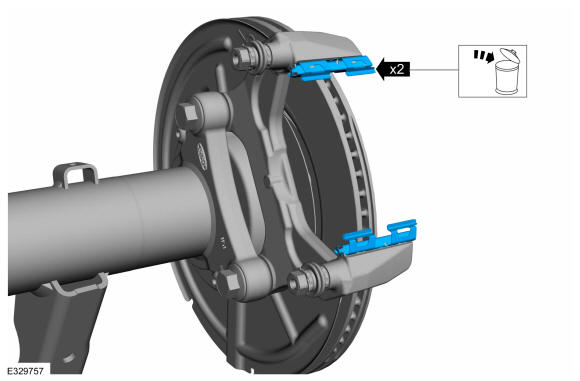

Remove the brake pad clips.

Courtesy of FORD MOTOR COMPANY
