Rear Brake Outer Flexible Hose: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Right hand (RH) and left hand (LH) outer brake hoses

Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
Remove the wheel and tire. Refer to: Wheel and Tire .

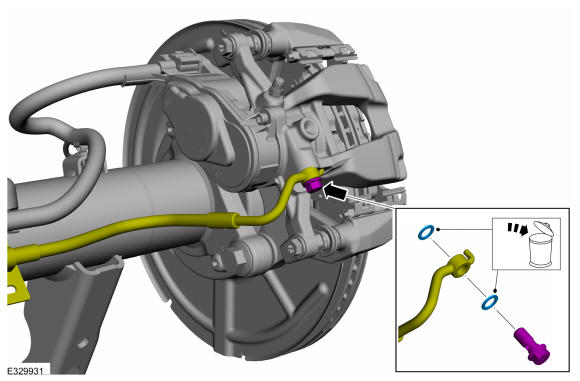

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

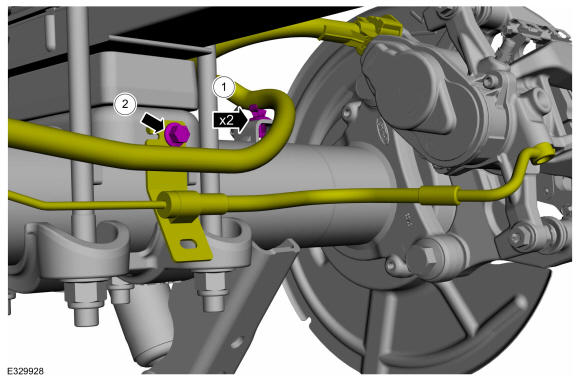

1. Detach the EPB wiring retainers and unclip the brake hose.
2. Remove the outer brake hose bracket bolt.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

Right hand (RH) outer brake hose

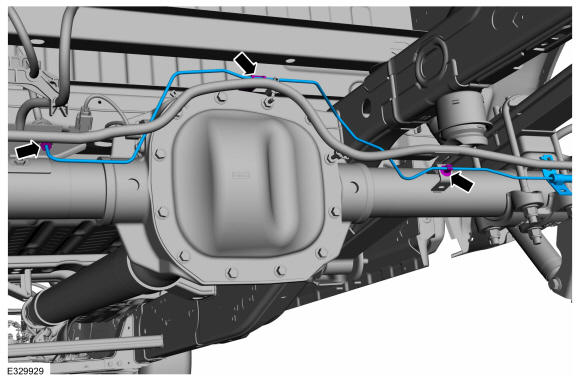

Detach the brake tube from the 2 axle clips, disconnect the brake tube fitting and remove the RH rear outer brake flexible hose/tube assembly.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

Left hand (LH) outer brake hose

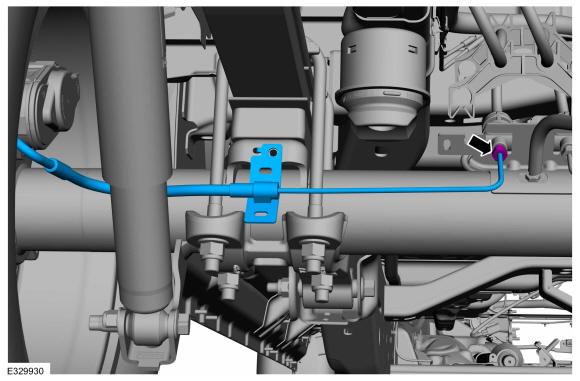

Disconnect the brake tube fitting and remove the LH rear outer brake flexible hose/tube assembly.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
