Rear Brake Inner Flexible Hose: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .

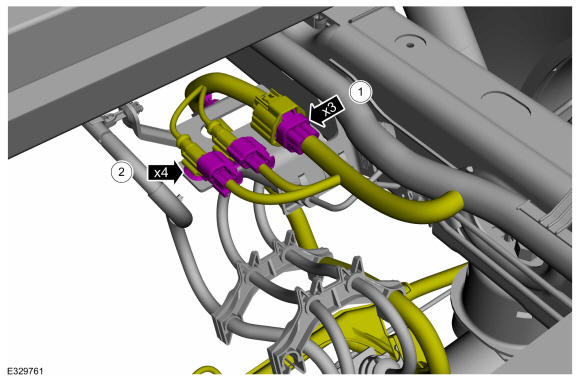

1. Disconnect the 2 wheel speed sensor electrical connectors and, if equipped, the EPB electrical connector.
2. Detach the 4 wiring retainers from the brake hose upper bracket and position the wiring aside.
Courtesy of FORD MOTOR COMPANY

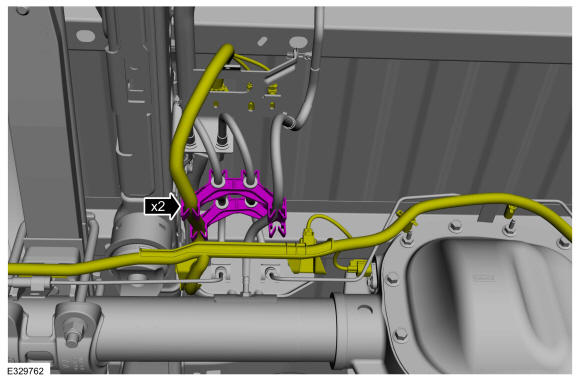

Detach the wiring harness from the brake routing bracket and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

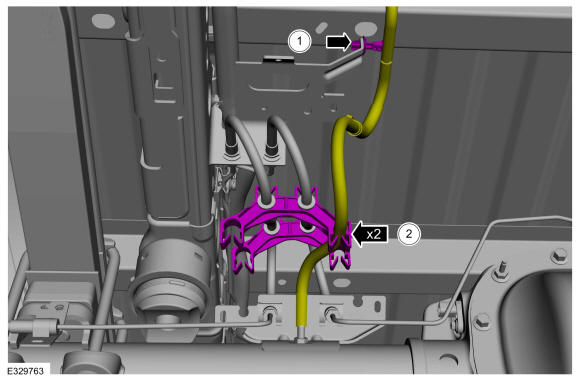

1. Detach the axle vent hose pin type retainer.
2. Detach the axle vent hose from the brake routing bracket and position the axle vent hose aside.
Courtesy of FORD MOTOR COMPANY

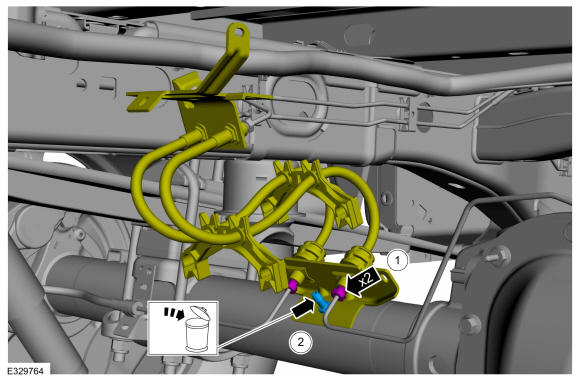

1. Disconnect the 2 brake tube fittings.
  Torque

  : 159 lb.in (18 Nm)
2. Remove and discard the axle vent.
  Torque

  : 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

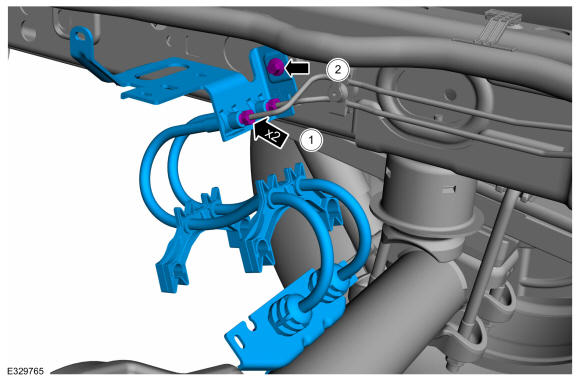

1. Disconnect the 2 brake tube fittings.
  Torque

  : 159 lb.in (18 Nm)
2. Remove the brake hose upper bracket bolt and the brake flexible hose and bracket assembly.
  Torque

  : 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
