Rear Brake Disc: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
Remove the wheel and tire. Refer to: Wheel and Tire .

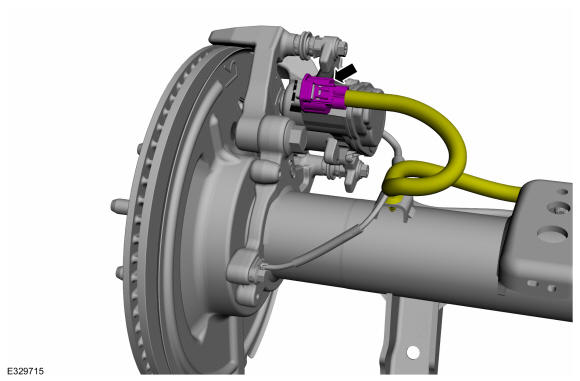

Disconnect the EPB actuator motor electrical connector and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

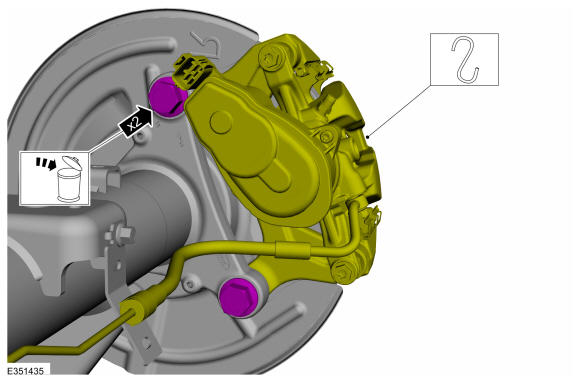

Remove the anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.

Torque

M16 Bolt : 181 lb.ft (245 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

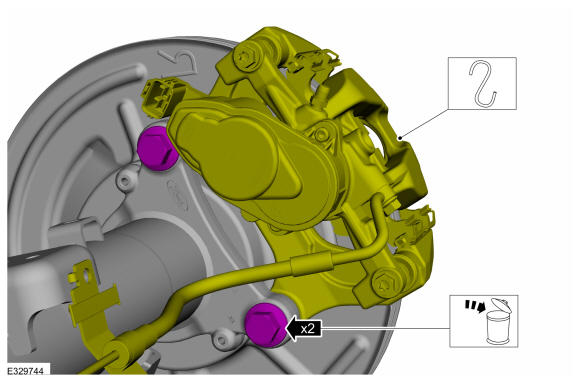

Remove the anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.

Torque

M18 Bolt : 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

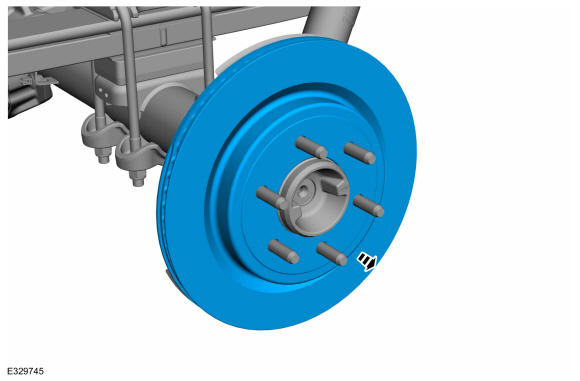

Remove the brake disc.

Courtesy of FORD MOTOR COMPANY
