Rear Brake Disc Shield: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
- Remove the axle shaft. Refer to: Axle Shaft . Refer to: Axle Shaft .

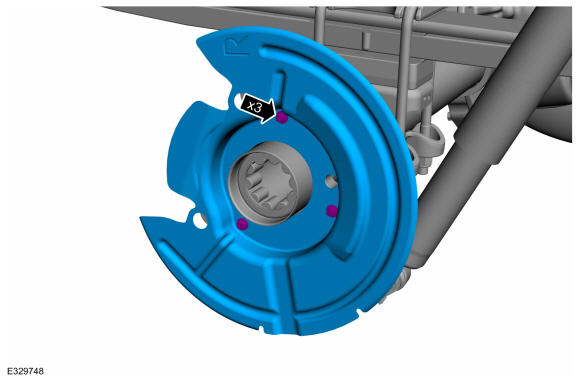

- Remove the bolts and the brake disc shield.
Torque
: 159 lb.in (18 Nm)
