Rear Brake Caliper: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
Remove the wheel and tire. Refer to: Wheel and Tire .
Disconnect the EPB actuator motor electrical connector and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

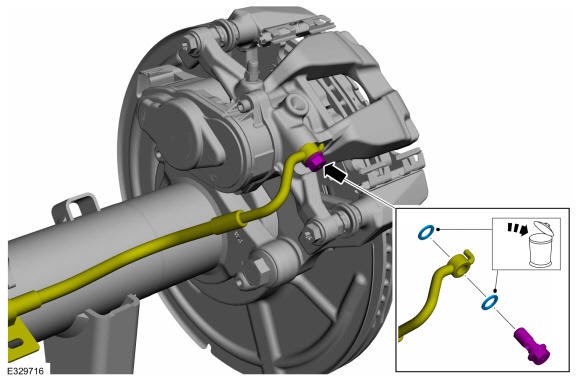

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

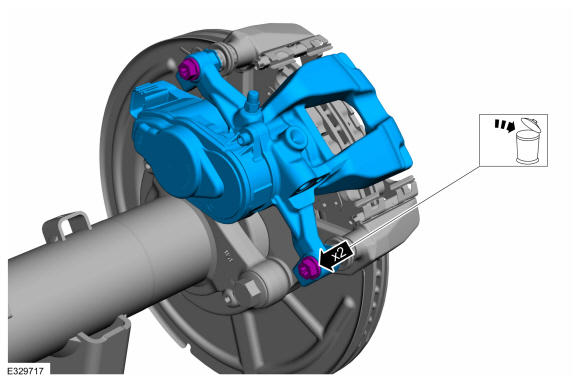

Remove the 2 bolts and the brake caliper. Discard the bolts.
Torque

: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

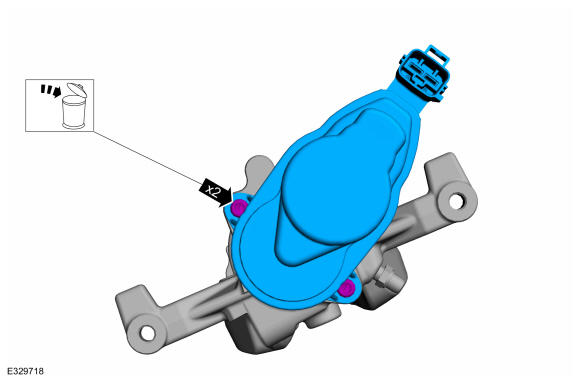

Remove the 2 bolts and the parking brake actuator motor. Discard the bolts.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

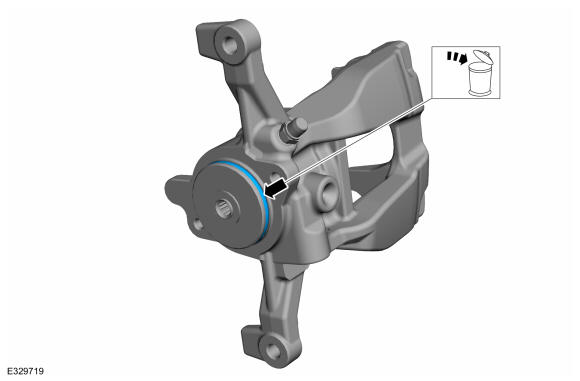

Remove and discard the O-ring.

Courtesy of FORD MOTOR COMPANY
