Rear Brake Caliper: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not damage the O-ring when installing the parking brake actuator motor to the brake caliper housing.

To install, reverse the removal procedure.

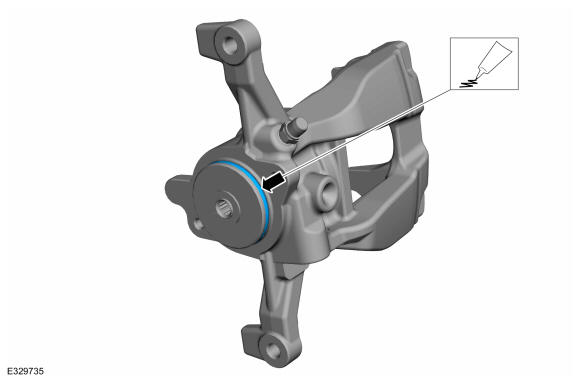

Clean the brake caliper housing O-ring groove and apply the grease supplied with the parking brake service kit.

Courtesy of FORD MOTOR COMPANY
Deactivate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
Bleed the brake system. Refer to: Brake System Pressure Bleeding .
