Rear Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake pads. Refer to: Brake Pads .

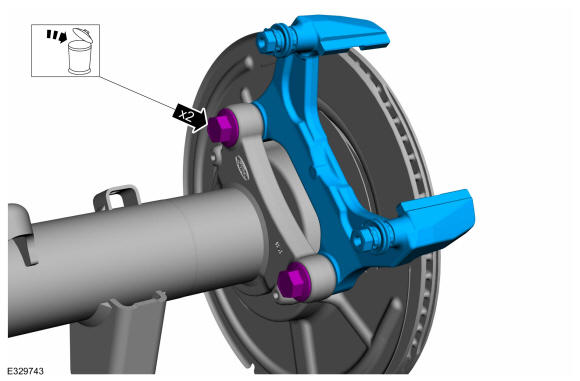

  2. Type 1 Remove the 2 bolts and the anchor plate. Discard the bolts

    Torque

    M16 Bolt: 181 lb.ft (245 Nm)

    GFD552152Courtesy of FORD MOTOR COMPANY

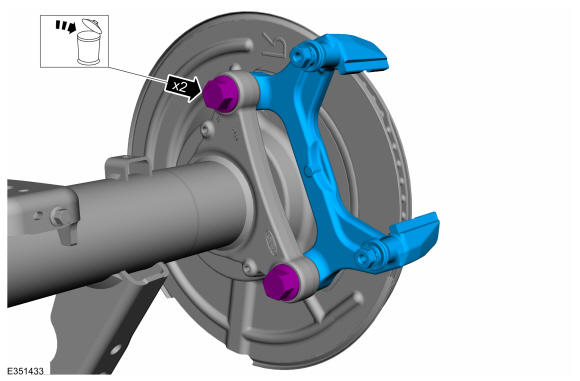

  3. Type 2 Remove the 2 bolts and the anchor plate. Discard the bolts

    Torque

    M18 Bolt : 258 lb.ft (350 Nm)

GFD552153Courtesy of FORD MOTOR COMPANY
